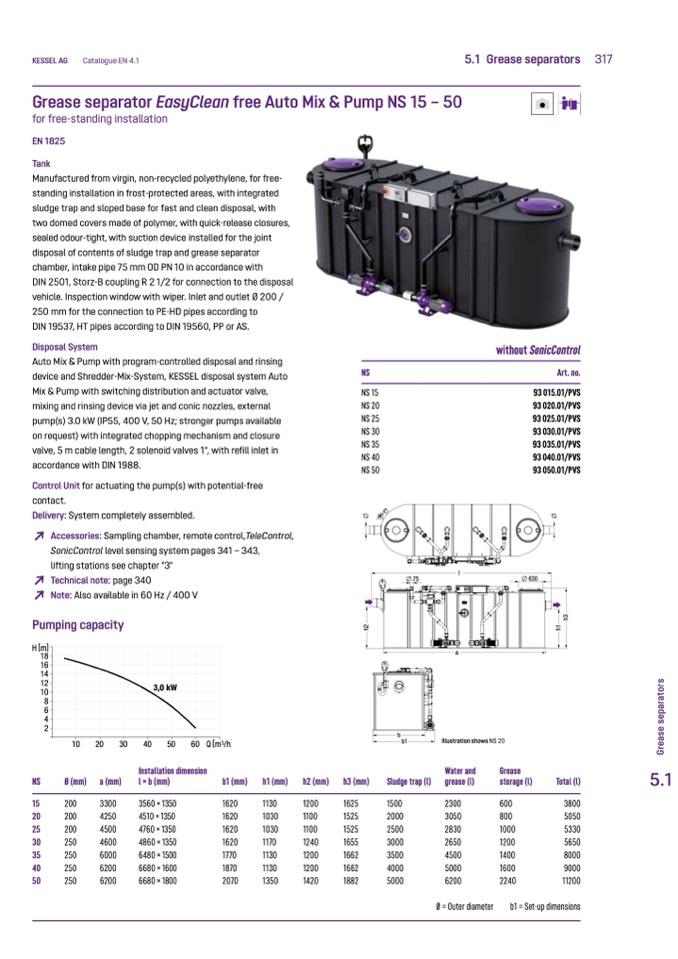

Grease separators 317

Grease separator EasyClean free Auto Mix & Pump NS 15 – 50

for free-standing installation

EN 1825

Tank

Manufactured from virgin, non-recycled polyethylene, for free-

standing installation in frost-protected areas, with integrated

sludge trap and sloped base for fast and clean disposal, with

two domed covers made of polymer, with quick-release closures,

sealed odour-tight, with suction device installed for the joint

disposal of contents of sludge trap and grease separator

chamber, intake pipe 75 mm OD PN 10 in accordance with

DIN 2501, Storz-B coupling R 2 1/2 for connection to the disposal

vehicle. Inspection window with wiper. Inlet and outlet Ø 200 /

250 mm for the connection to PE-HD pipes according to

DIN 19537, HT pipes according to DIN 19560, PP or AS.

Disposal System

Auto Mix & Pump with program-controlled disposal and rinsing

device and Shredder-Mix-System, KESSEL disposal system Auto

Mix & Pump with switching distribution and actuator valve,

mixing and rinsing device via jet and conic nozzles, external

pump(s) 3.0 kW (IP55, 400 V, 50 Hz; stronger pumps available

on request) with integrated chopping mechanism and closure

valve, 5 m cable length, 2 solenoid valves 1“, with refill inlet in

accordance with DIN 1988.

Control Unit for actuating the pump(s) with potential-free

contact.

Delivery: System completely assembled.

↗

Accessories: Sampling chamber, remote control,TeleControl,

SonicControl level sensing system pages 341 – 343,

lifting stations see chapter "3"

↗

Technical note: page 340

Note: Also available in 60 Hz / 400 V

Pumping capacity

H [m]

18

16

14

12

10

8

6

4

2

l

75

630

a

b

b1

NS

15

20

25

30

35

40

50

Ø (mm)

200

200

200

250

250

250

250

a (mm)

3300

4250

4500

4600

6000

6200

6200

Total (l)

10

20

30

3,0 kW

40

50

60 Q [m

3

/h]

a

b

b1

Illustration shows NS 20

Installation dimension

l ×b (mm)

3560 × 1350

4510 × 1350

4760 × 1350

4860 × 1350

6480 × 1500

6680 × 1600

6680 × 1800

b1 (mm)

1620

1620

1620

1620

1770

1870

2070

h1 (mm)

1130

1030

1030

1170

1130

1130

1350

h2 (mm)

1200

1100

1100

1240

1200

1200

1420

h3 (mm)

1625

1525

1525

1655

1662

1662

1882

Sludge trap (l)

1500

2000

2500

3000

3500

4000

5000

Water and

grease (l)

2300

3050

2830

2650

4500

5000

6200

Grease

storage (l)

600

800

1000

1200

1400

1600

2240

11200

5.1

NS

NS 15

NS 20

NS 25

NS 30

NS 35

NS 40

NS 50

without SonicControl

Art. no.

93 015.01/PVS

93 020.01/PVS

93 025.01/PVS

93 030.01/PVS

93 035.01/PVS

93 040.01/PVS

93 050.01/PVS

a

b

b1

l

75

630

l

75

630

h

2

h

1

h

3

G

r

e

a

s

e

s

e

p

a

r

a

t

o

r

s

h

2

h

2

h

1

h

1

h

3

h

3

Ø = Outer diameter

b1 = Set-up dimensions

3800

5050

5330

5650

8000

9000
