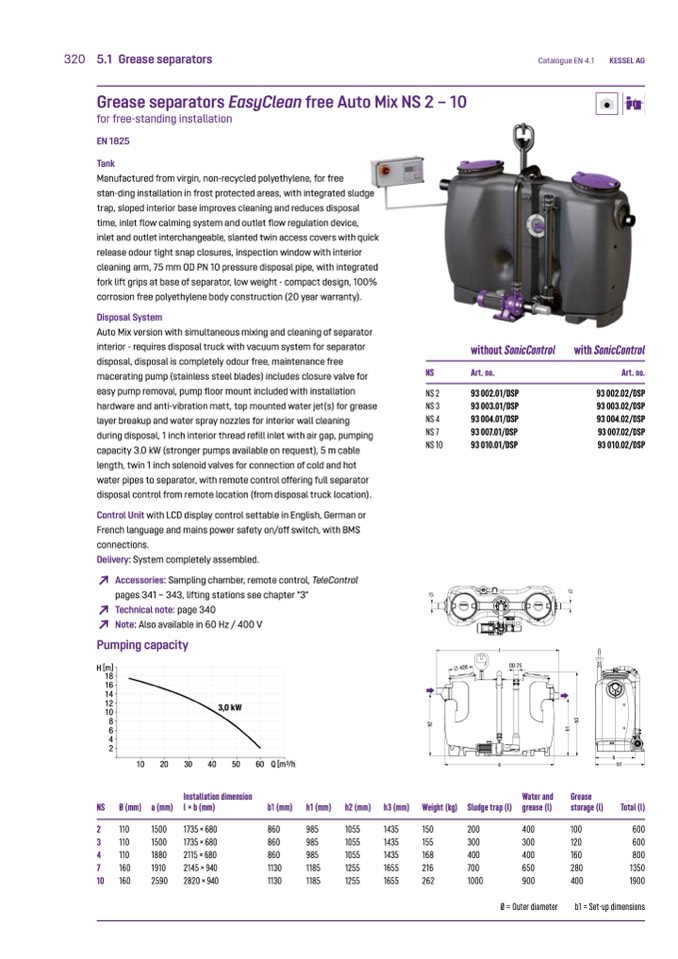

320 5.1 Grease separators
Grease separators EasyClean free Auto Mix NS 2 – 10
for free-standing installation
EN 1825
Tank
Manufactured from virgin, non-recycled polyethylene, for free
stan-ding installation in frost protected areas, with integrated sludge
trap, sloped interior base improves cleaning and reduces disposal
time, inlet flow calming system and outlet flow regulation device,
inlet and outlet interchangeable, slanted twin access covers with quick
release odour tight snap closures, inspection window with interior
cleaning arm, 75 mm OD PN 10 pressure disposal pipe, with integrated
fork lift grips at base of separator, low weight - compact design, 100%
corrosion free polyethylene body construction (20 year warranty).
Disposal System
Auto Mix version with simultaneous mixing and cleaning of separator
interior - requires disposal truck with vacuum system for separator
disposal, disposal is completely odour free, maintenance free
macerating pump (stainless steel blades) includes closure valve for
easy pump removal, pump floor mount included with installation
hardware and anti-vibration matt, top mounted water jet(s) for grease
layer breakup and water spray nozzles for interior wall cleaning
during disposal, 1 inch interior thread refill inlet with air gap, pumping
capacity 3.0 kW (stronger pumps available on request), 5 m cable
length, twin 1 inch solenoid valves for connection of cold and hot
water pipes to separator, with remote control offering full separator
disposal control from remote location (from disposal truck location).
Control Unit with LCD display control settable in English, German or
French language and mains power safety on/off switch, with BMS
connections.
Delivery: System completely assembled.
↗
Accessories: Sampling chamber, remote control, TeleControl
pages 341 – 343, lifting stations see chapter "3"
Catalogue EN 4.1
KESSEL AG
↗
Technical note: page 340
Note: Also available in 60 Hz / 400 V
Pumping capacity
l
a
b
a
H [m]
18
16
14
12
10
8
6
4
2
3,0 kW
20
30
40
50
60Q[m
3
/h]
NS
2
3
4
7
10
a (mm)
1500
1500
1880
1910
2590
Installation dimension
l ×b (mm)
1735 × 680
1735 × 680
2115 × 680
2145 × 940
2820 × 940
b1 (mm)
860
860
860
1130
1130
h1 (mm)
985
985
985
1185
1185
h2 (mm)
1055
1055
1055
1255
1255
h3 (mm)
1435
1435
1435
1655
1655
Weight (kg)
Sludge trap (l)
Water and
grease (l)
400
300
400
650
900
Grease
storage (l)
Total (l)
10
Ø (mm)
110
110
110
160
160
b1
b
NS
NS 2
NS 3
NS 4
NS 7
NS 10
without SonicControl
Art. no.
93 002.01/DSP
93 003.01/DSP
93 004.01/DSP
l
with SonicControl
Art. no.
93 002.02/DSP
93 003.02/DSP
93 004.02/DSP
93 007.02/DSP
93 010.02/DSP
150
200
155
300
168
400
216
700
262
1000
100
600
120
600
160
800
280
1350
400
1900
93 007.01/DSP
93 010.01/DSP
420
420
420
h
2
h
2
h
2
h
1
h
3
h
1
h
3
h
1
h
3
l
a
b
b1
OD 75
OD 75
OD 75
Ø = Outer diameter
b1 = Set-up dimensions
b1
