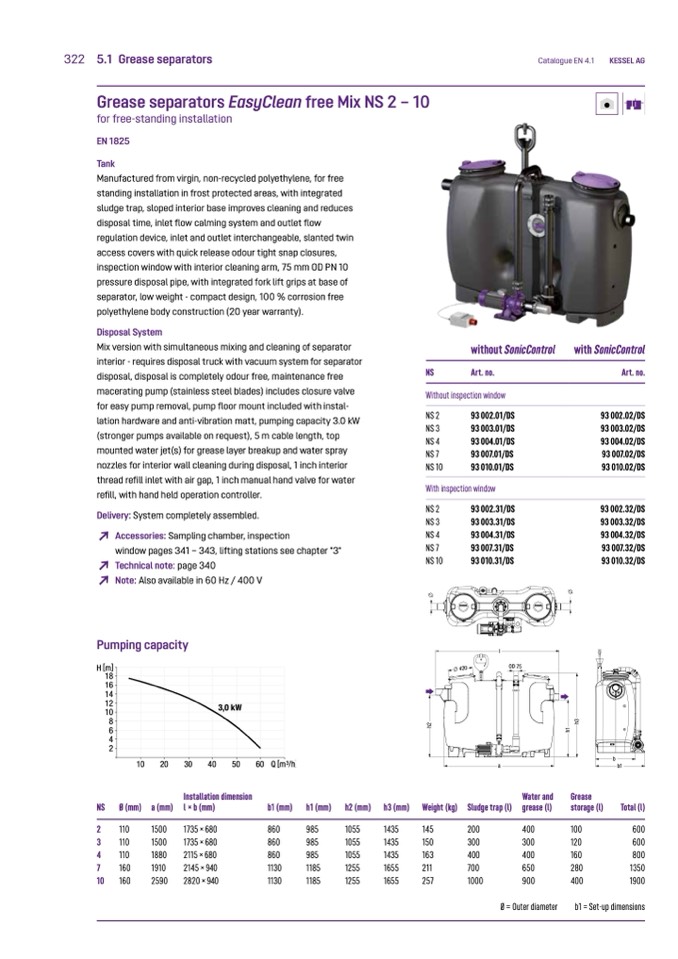

322 5.1 Grease separators

Grease separators EasyClean free Mix NS 2 – 10

Catalogue EN 4.1

KESSEL AG

for free-standing installation

EN 1825

Tank

Manufactured from virgin, non-recycled polyethylene, for free

standing installation in frost protected areas, with integrated

sludge trap, sloped interior base improves cleaning and reduces

disposal time, inlet flow calming system and outlet flow

regulation device, inlet and outlet interchangeable, slanted twin

access covers with quick release odour tight snap closures,

inspection window with interior cleaning arm, 75 mm OD PN 10

pressure disposal pipe, with integrated fork lift grips at base of

separator, low weight - compact design, 100 % corrosion free

polyethylene body construction (20 year warranty).

Disposal System

Mix version with simultaneous mixing and cleaning of separator

interior - requires disposal truck with vacuum system for separator

disposal, disposal is completely odour free, maintenance free

macerating pump (stainless steel blades) includes closure valve

for easy pump removal, pump floor mount included with instal-

lation hardware and anti-vibration matt, pumping capacity 3.0 kW

(stronger pumps available on request), 5 m cable length, top

mounted water jet(s) for grease layer breakup and water spray

nozzles for interior wall cleaning during disposal, 1 inch interior

thread refill inlet with air gap, 1 inch manual hand valve for water

refill, with hand held operation controller.

with SonicControl

Art. no.

93 002.02/DS

93 003.02/DS

93 004.02/DS

93 007.02/DS

93 010.02/DS

93 002.31/DS

93 003.31/DS

93 003.32/DS

Delivery: System completely assembled.

NS2

NS3

NS4

NS7

NS 10

93 002.32/DS

↗

↗

Technical note: page 340

93 004.31/DS

93 004.32/DS

Accessories: Sampling chamber, inspection

a

b

window pages 341 – 343, lifting stations see chapter "3"

Note: Also available in 60 Hz / 400 V

93007.31/DS

93 010.31/DS

l

93007.32/DS

b1

93 010.32/DS

Pumping capacity

l

H [m]

18

16

14

12

10

8

6

4

2

3,0 kW

40

50

NS

2

3

4

7

10

a (mm)

1500

1500

1880

1910

2590

Installation dimension

l ×b (mm)

1735 × 680

1735 × 680

2115 × 680

2145 × 940

2820 × 940

h1 (mm)

985

985

985

1185

1185

h2 (mm)

1055

1055

1055

1255

1255

h3 (mm)

1435

1435

1435

1655

1655

Weight (kg)

145

150

163

211

257

Water and

grease (l)

400

300

400

650

900

Grease

storage (l)

100

120

160

280

400

10

Ø (mm)

110

110

110

160

160

20

30

60 Q[m

3

/h]

b1 (mm)

860

860

860

1130

1130

a

a

Sludge trap (l)

200

300

400

700

1000

b

b1

b

Total (l)

600

600

800

1350

1900

NS

without SonicControl

Art. no.

Without inspection window

NS2

NS3

NS4

NS7

NS 10

93 002.01/DS

93 003.01/DS

93 004.01/DS

93 007.01/DS

93 010.01/DS

420

420

420

With inspection window

l

h

2

h

2

h

2

h

1

h

3

h

1

h

3

h

1

h

3

OD 75

OD 75

OD 75

Ø = Outer diameter

b1 = Set-up dimensions

b1
