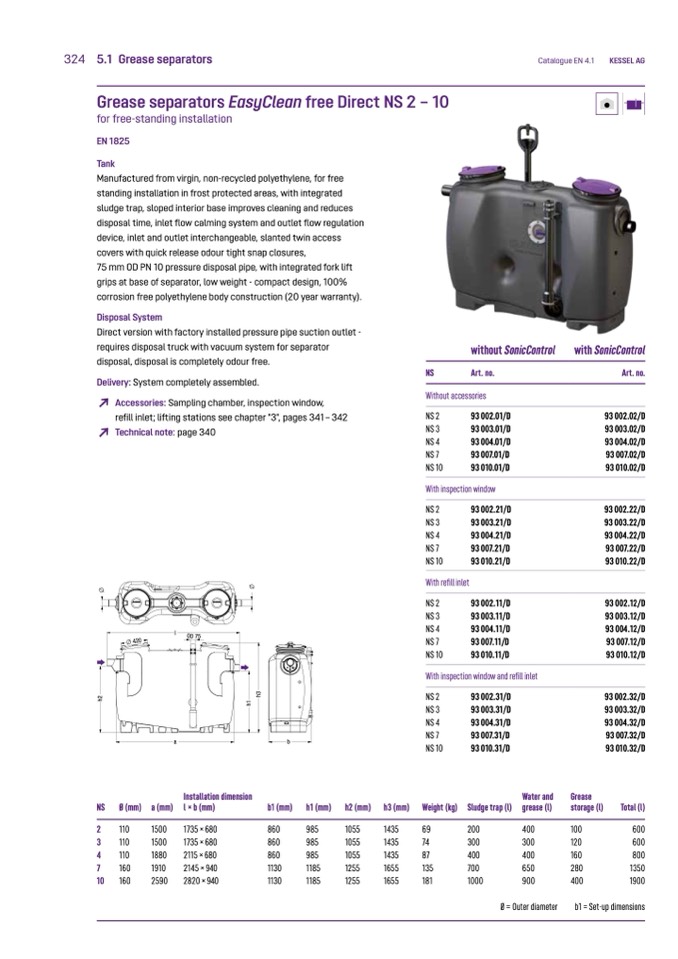

324 5.1 Grease separators

Grease separators EasyClean free Direct NS 2 – 10

Catalogue EN 4.1

KESSEL AG

for free-standing installation

EN 1825

Tank

Manufactured from virgin, non-recycled polyethylene, for free

standing installation in frost protected areas, with integrated

sludge trap, sloped interior base improves cleaning and reduces

disposal time, inlet flow calming system and outlet flow regulation

device, inlet and outlet interchangeable, slanted twin access

covers with quick release odour tight snap closures,

75 mm OD PN 10 pressure disposal pipe, with integrated fork lift

grips at base of separator, low weight - compact design, 100%

corrosion free polyethylene body construction (20 year warranty).

Disposal System

Direct version with factory installed pressure pipe suction outlet -

requires disposal truck with vacuum system for separator

disposal, disposal is completely odour free.

Delivery: System completely assembled.

↗

Accessories: Sampling chamber, inspection window,

refill inlet; lifting stations see chapter "3", pages 341 – 342

↗

Technical note:

l

page 340

NS

without SonicControl

Art. no.

with SonicControl

Art. no.

93 002.02/D

93 003.02/D

93 004.02/D

93 007.02/D

93 010.02/D

93 002.22/D

93 003.22/D

93 004.22/D

93 007.22/D

93 010.22/D

93 002.12/D

93 003.12/D

93 004.12/D

93 007.12/D

93 010.12/D

93 002.32/D

93 003.32/D

93 004.32/D

93 007.32/D

93 010.32/D

Total (l)

600

600

800

1350

1900

420

420

420

OD 75

OD 75

OD 75

h

2

h

2

h

2

h

1

h

3

h

1

h

3

h

1

h

3

NS

Ø (mm)

2

110

3

110

4

110

7

160

10

160

a (mm)

1500

1500

1880

1910

2590

Installation dimension

l ×b (mm)

1735 × 680

1735 × 680

2115 × 680

2145 × 940

2820 × 940

b1 (mm)

860

860

860

1130

1130

h1 (mm)

985

985

985

1185

1185

h2 (mm)

1055

1055

1055

1255

1255

h3 (mm)

1435

1435

1435

1655

1655

NS2

NS3

NS4

NS7

NS 10

Weight (kg)

69

74

87

135

181

93 002.31/D

93 003.31/D

93 004.31/D

93 007.31/D

93 010.31/D

Sludge trap (l)

200

300

400

700

1000

Water and

grease (l)

400

300

400

650

900

Grease

storage (l)

100

120

160

280

400

a

b

l

l

a

a

b

b

NS2

NS3

NS4

NS7

NS 10

With refill inlet

NS2

NS3

NS4

NS7

NS 10

93 002.21/D

93 003.21/D

93 004.21/D

93 007.21/D

93 010.21/D

93 002.11/D

93 003.11/D

93 004.11/D

93 007.11/D

93 010.11/D

Without accessories

NS2

NS3

NS4

NS7

NS 10

93 002.01/D

93 003.01/D

93 004.01/D

93 007.01/D

93 010.01/D

With inspection window

With inspection window and refill inlet

Ø = Outer diameter

b1 = Set-up dimensions
