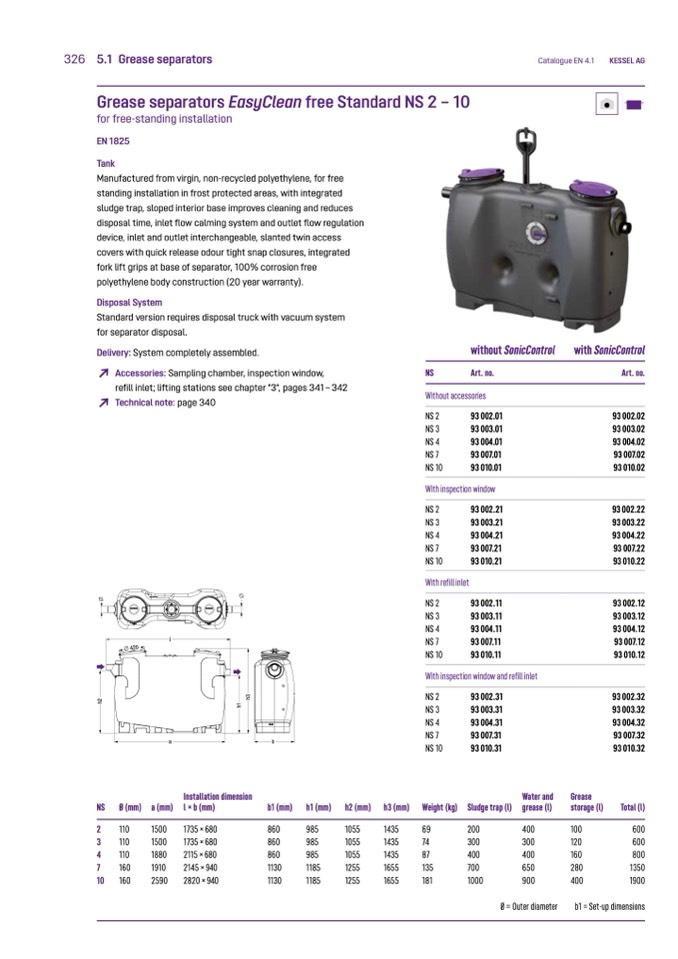

326 5.1 Grease separators
Grease separators EasyClean free Standard NS 2 – 10
Catalogue EN 4.1
KESSEL AG
for free-standing installation
EN 1825
Tank
Manufactured from virgin, non-recycled polyethylene, for free
standing installation in frost protected areas, with integrated
sludge trap, sloped interior base improves cleaning and reduces
disposal time, inlet flow calming system and outlet flow regulation
device, inlet and outlet interchangeable, slanted twin access
covers with quick release odour tight snap closures, integrated
fork lift grips at base of separator, 100% corrosion free
polyethylene body construction (20 year warranty).
Disposal System
Standard version requires disposal truck with vacuum system
for separator disposal.
Delivery: System completely assembled.
↗
Accessories: Sampling chamber, inspection window,
refill inlet; lifting stations see chapter "3", pages 341 – 342
NS
without SonicControl
Art. no.
with SonicControl
Art. no.
93 002.02
93 003.02
93 004.02
93 007.02
93 010.02
93 002.22
93 003.22
93 004.22
93 007.22
93 010.22
93 002.12
93 003.12
93 004.12
93 007.12
93 010.12
93 002.32
93 003.32
93 004.32
93 007.32
93 010.32
Total (l)
600
600
800
1350
1900
↗
Technical note: page 340
l
Without accessories
420
420
420
h
2
h
2
h
2
h
1
h
3
h
1
h
3
h
1
h
3
NS
Ø (mm)
2
110
3
110
4
110
7
160
10
160
a (mm)
1500
1500
1880
1910
2590
Installation dimension
l ×b (mm)
1735 × 680
1735 × 680
2115 × 680
2145 × 940
2820 × 940
b1 (mm)
860
860
860
1130
1130
h1 (mm)
985
985
985
1185
1185
h2 (mm)
1055
1055
1055
1255
1255
h3 (mm)
1435
1435
1435
1655
1655
NS2
NS3
NS4
NS7
NS 10
Weight (kg)
69
74
87
135
181
93 002.31
93 003.31
93 004.31
93 007.31
93 010.31
Sludge trap (l)
200
300
400
700
1000
Water and
grease (l)
400
300
400
650
900
Grease
storage (l)
100
120
160
280
400
a
b
l
l
a
a
b
b
NS2
NS3
NS4
NS7
NS 10
With refill inlet
NS2
NS3
NS4
NS7
NS 10
93 002.21
93 003.21
93 004.21
93 007.21
93 010.21
93 002.11
93 003.11
93 004.11
93 007.11
93 010.11
NS2
NS3
NS4
NS7
NS 10
93 002.01
93 003.01
93 004.01
93 007.01
93 010.01
With inspection window
With inspection window and refill inlet
Ø = Outer diameter
b1 = Set-up dimensions
