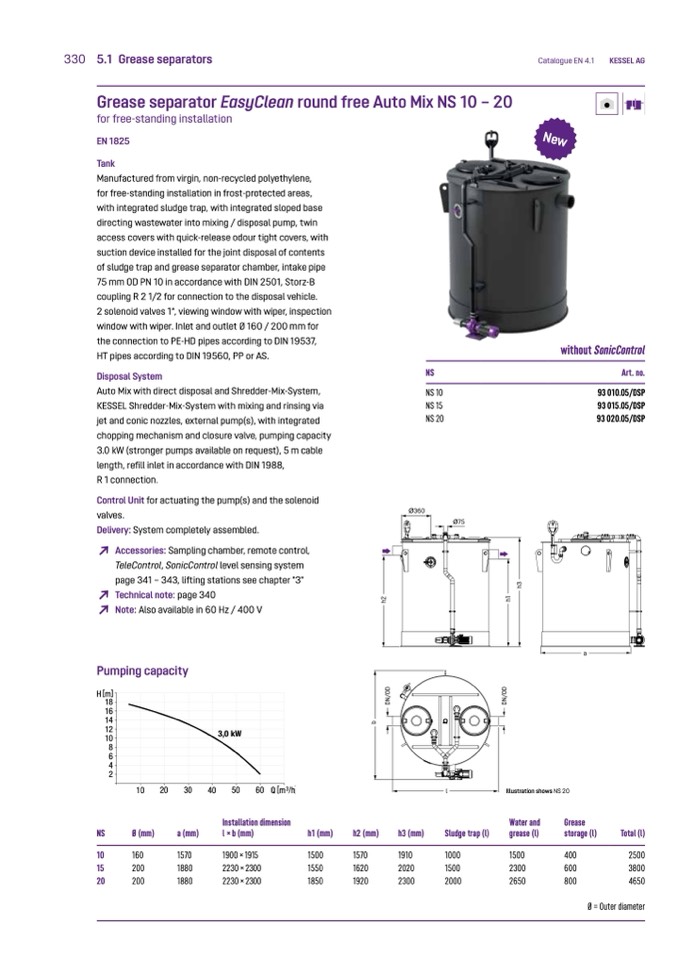

330 5.1 Grease separators
Grease separator EasyClean round free Auto Mix NS 10 – 20
for free-standing installation
EN 1825
Tank
Manufactured from virgin, non-recycled polyethylene,
for free-standing installation in frost-protected areas,
with integrated sludge trap, with integrated sloped base
directing wastewater into mixing / disposal pump, twin
access covers with quick-release odour tight covers, with
suction device installed for the joint disposal of contents
of sludge trap and grease separator chamber, intake pipe
75 mm OD PN 10 in accordance with DIN 2501, Storz-B
coupling R 2 1/2 for connection to the disposal vehicle.
2 solenoid valves 1“, viewing window with wiper, inspection
window with wiper. Inlet and outlet Ø 160 / 200 mm for
the connection to PE-HD pipes according to DIN 19537,
HT pipes according to DIN 19560, PP or AS.
Disposal System
Auto Mix with direct disposal and Shredder-Mix-System,
KESSEL Shredder-Mix-System with mixing and rinsing via
jet and conic nozzles, external pump(s), with integrated
chopping mechanism and closure valve, pumping capacity
3.0 kW (stronger pumps available on request), 5 m cable
length, refill inlet in accordance with DIN 1988,
R 1 connection.
Control Unit for actuating the pump(s) and the solenoid
valves.
Delivery: System completely assembled.
↗
Accessories: Sampling chamber, remote control,
TeleControl, SonicControl level sensing system
page 341 – 343, lifting stations see chapter "3"
Catalogue EN 4.1
KESSEL AG
New
b
D
N
/
O
D
h
2
D
N
/
O
D
h
1
h
3
↗
Technical note: page 340
↗
Note: Also available in 60 Hz / 400 V
Pumping capacity
H [m]
18
16
14
12
10
8
6
4
2
3,0 kW
40
50
60
NS
10
15
20
Installation dimension
l × b (mm)
1900 × 1915
2230 × 2300
2230 × 2300
h1 (mm)
1500
1550
1850
h2 (mm)
1570
1620
1920
h3 (mm)
1910
2020
2300
Water and
grease (l)
1500
2300
2650
Grease
storage (l)
Total (l)
10
20
Ø (mm)
30
a (mm)
Q [m
3
/h]
l
Sludge trap (l)
1000
1500
2000
Illustration shows NS 20
160
1570
200
1880
200
1880
400
2500
600
3800
800
4650
NS
NS 10
NS 15
NS 20
Ø360
Ø75
without SonicControl
Art. no.
93 010.05/DSP
93 015.05/DSP
93 020.05/DSP
a
Ø = Outer diameter
