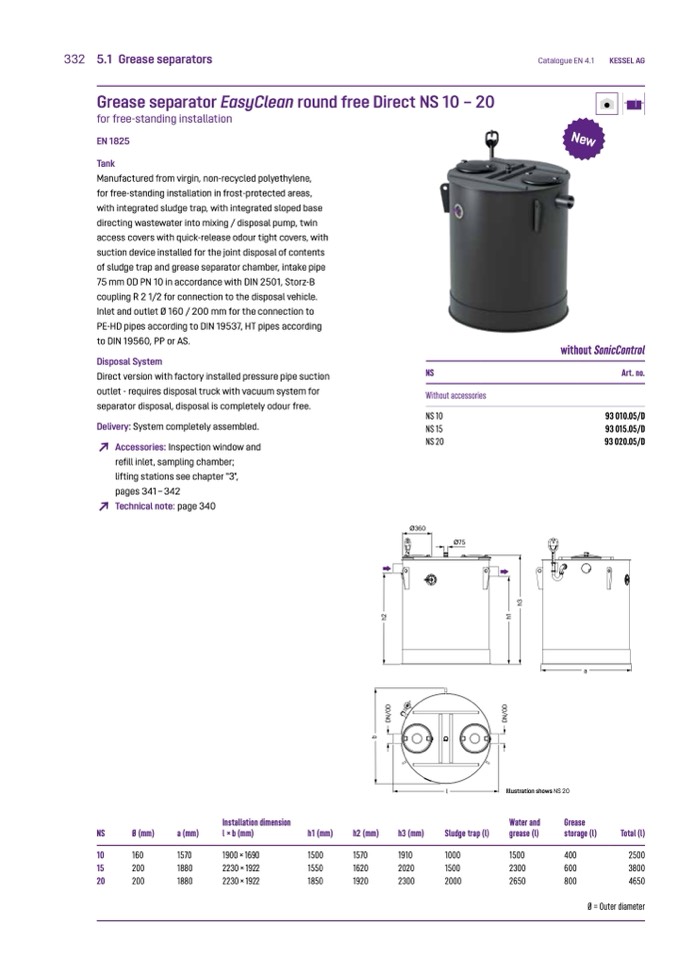

332 5.1 Grease separators

Grease separator EasyClean round free Direct NS 10 – 20

Catalogue EN 4.1

KESSEL AG

for free-standing installation

EN 1825

Tank

Manufactured from virgin, non-recycled polyethylene,

for free-standing installation in frost-protected areas,

with integrated sludge trap, with integrated sloped base

directing wastewater into mixing / disposal pump, twin

access covers with quick-release odour tight covers, with

suction device installed for the joint disposal of contents

of sludge trap and grease separator chamber, intake pipe

75 mm OD PN 10 in accordance with DIN 2501, Storz-B

coupling R 2 1/2 for connection to the disposal vehicle.

Inlet and outlet Ø 160 / 200 mm for the connection to

PE-HD pipes according to DIN 19537, HT pipes according

to DIN 19560, PP or AS.

Disposal System

Direct version with factory installed pressure pipe suction

outlet - requires disposal truck with vacuum system for

separator disposal, disposal is completely odour free.

NS

Without accessories

NS 10

NS 15

NS 20

Ø360

Ø75

without SonicControl

Art. no.

New

Delivery: System completely assembled.

↗

Accessories: Inspection window and

refill inlet, sampling chamber;

lifting stations see chapter "3",

pages 341 – 342

93 010.05/D

93 015.05/D

93 020.05/D

↗

Technical note: page 340

b

D

N

/

O

D

h

2

D

N

/

O

D

h

1

h

3

NS

Ø (mm)

10

160

15

200

20

200

a (mm)

1570

1880

1880

Installation dimension

l × b (mm)

1900 × 1690

2230 × 1922

2230 × 1922

h1 (mm)

h2 (mm)

h3 (mm)

Water and

grease (l)

1500

2300

2650

Grease

storage (l)

Total (l)

1500

1570

1910

1000

1550

1620

2020

1500

1850

1920

2300

2000

400

2500

600

3800

800

4650

l

Sludge trap (l)

Illustration shows NS 20

a

Ø = Outer diameter
