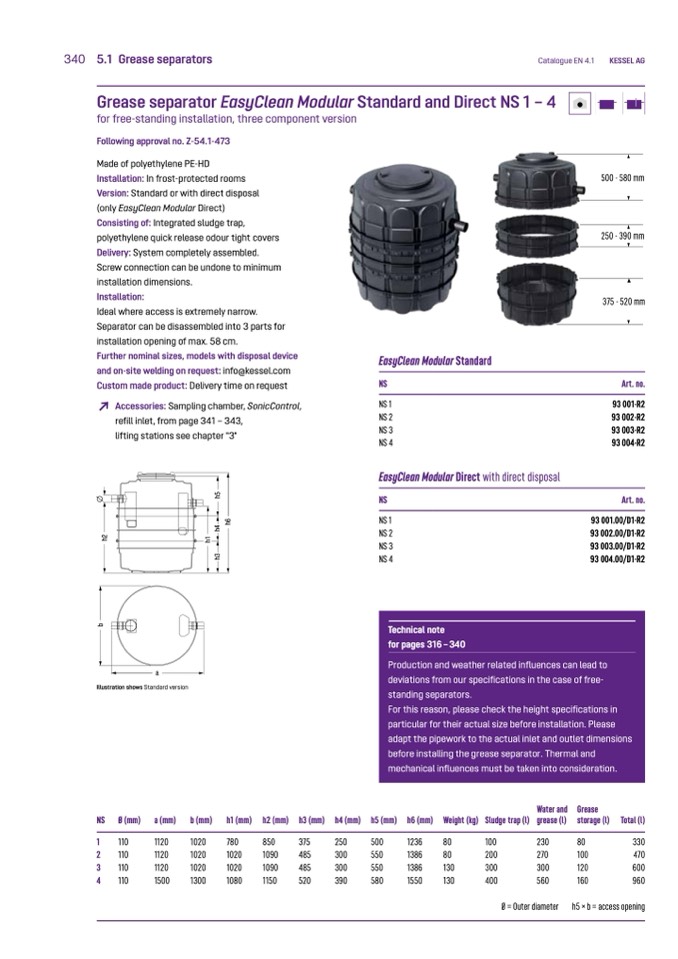

340 5.1 Grease separators

Catalogue EN 4.1

Grease separator EasyClean Modular Standard and Direct NS 1 – 4

for free-standing installation, three component version

KESSEL AG

500 - 580 mm

250-390mm

375-520mm

Art. no.

93 001-R2

93 002-R2

93 003-R2

93 004-R2

Art. no.

93 001.00/D1-R2

93 002.00/D1-R2

93 003.00/D1-R2

93 004.00/D1-R2

Following approval no. Z-54.1-473

Made of polyethylene PE-HD

Installation: In frost-protected rooms

Version: Standard or with direct disposal

(only EasyClean Modular Direct)

Consisting of: Integrated sludge trap,

polyethylene quick release odour tight covers

Delivery: System completely assembled.

Screw connection can be undone to minimum

installation dimensions.

Installation:

Ideal where access is extremely narrow.

Separator can be disassembled into 3 parts for

installation opening of max. 58 cm.

Further nominal sizes, models with disposal device

and on-site welding on request: info@kessel.com

Custom made product: Delivery time on request

↗

Accessories: Sampling chamber, SonicControl,

refill inlet, from page 341 – 343,

lifting stations see chapter "3"

EasyClean Modular Standard

NS

NS 1

NS 2

NS 3

NS 4

EasyClean Modular Direct with direct disposal

NS

NS 1

NS 2

NS 3

NS 4

Technical note

for pages 316 – 340

h

1

h

3

h

4

h

5

h

6

b

h

2

h

1

h

3

h

4

h

5

b

h

6

a

Illustration shows Standard version

Production and weather related influences can lead to

deviations from our specifications in the case of free-

standing separators.

For this reason, please check the height specifications in

particular for their actual size before installation. Please

adapt the pipework to the actual inlet and outlet dimensions

before installing the grease separator. Thermal and

mechanical influences must be taken into consideration.

NS Ø (mm)

1

110

2

110

3

110

4

110

a (mm)

1120

1120

1120

1500

b (mm)

1020

1020

1020

1300

h1 (mm)

780

1020

1020

1080

h2 (mm)

850

1090

1090

1150

h3 (mm)

375

485

485

520

h4 (mm)

250

300

300

390

h5 (mm)

500

550

550

580

h6 (mm)

1236

1386

1386

1550

Weight (kg)

80

80

130

130

Sludge trap (l)

100

200

300

400

Water and

grease (l)

230

270

300

560

Grease

storage (l) Total (l)

80

330

100

470

120

600

160

960

a

Ø = Outer diameter

h5 × b = access opening
