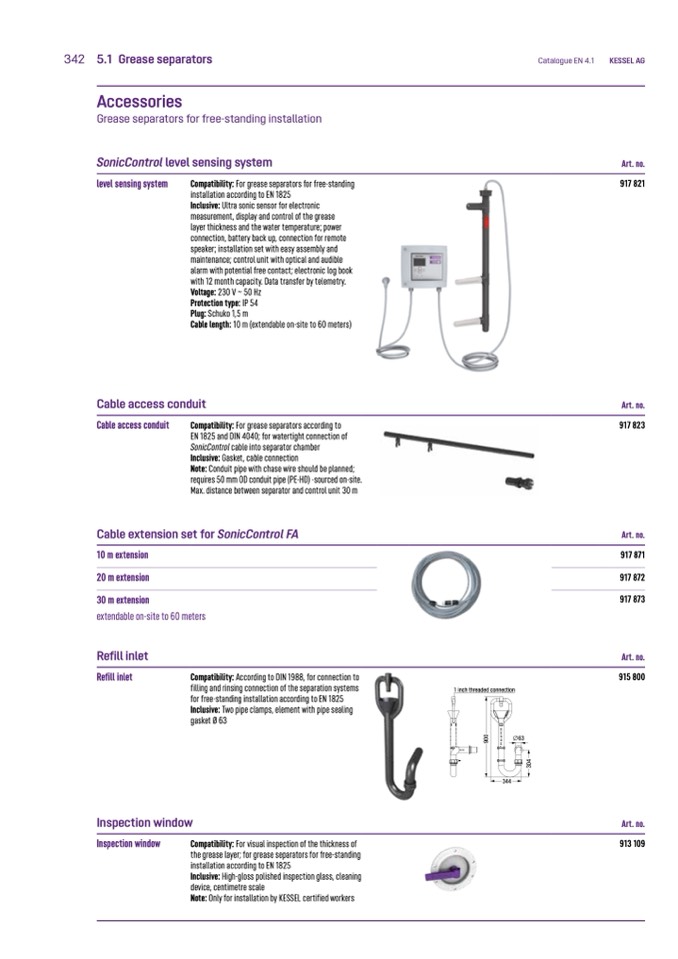

342 5.1 Grease separators
Accessories
Grease separators for free-standing installation
SonicControl level sensing system
Catalogue EN 4.1
KESSEL AG
Art. no.
917 821
level sensing system
Compatibility: For grease separators for free-standing
installation according to EN 1825
Inclusive: Ultra sonic sensor for electronic
measurement, display and control of the grease
layer thickness and the water temperature; power
connection, battery back up, connection for remote
speaker; installation set with easy assembly and
maintenance; control unit with optical and audible
alarm with potential free contact; electronic log book
with 12 month capacity. Data transfer by telemetry.
Voltage: 230 V ~ 50 Hz
Protection type: IP 54
Plug: Schuko 1,5 m
Cable length: 10 m (extendable on-site to 60 meters)
Cable access conduit
Art. no.
917 823
Art. no.
917 871
917 872
917 873
Art. no.
915 800
Art. no.
913 109
Cable access conduit
Compatibility: For grease separators according to
EN 1825 and DIN 4040; for watertight connection of
SonicControl cable into separator chamber
Inclusive: Gasket, cable connection
Note: Conduit pipe with chase wire should be planned;
requires 50 mm OD conduit pipe (PE-HD) -sourced on-site.
Max. distance between separator and control unit 30 m
Cable extension set for SonicControl FA
10 m extension
20 m extension
30 m extension
extendable on-site to 60 meters
Refill inlet
Refill inlet
Compatibility: According to DIN 1988, for connection to
filling and rinsing connection of the separation systems
for free-standing installation according to EN 1825
Inclusive: Two pipe clamps, element with pipe sealing
gasket Ø 63
3
0
4
9
0
0
Inspection window
Inspection window
Compatibility: For visual inspection of the thickness of
the grease layer; for grease separators for free-standing
installation according to EN 1825
Inclusive: High-gloss polished inspection glass, cleaning
device, centimetre scale
Note: Only for installation by KESSEL certified workers
1 inch threaded connection
63
344
