KESSEL AG

Catalogue EN 4.1

5.1 Grease separators 349

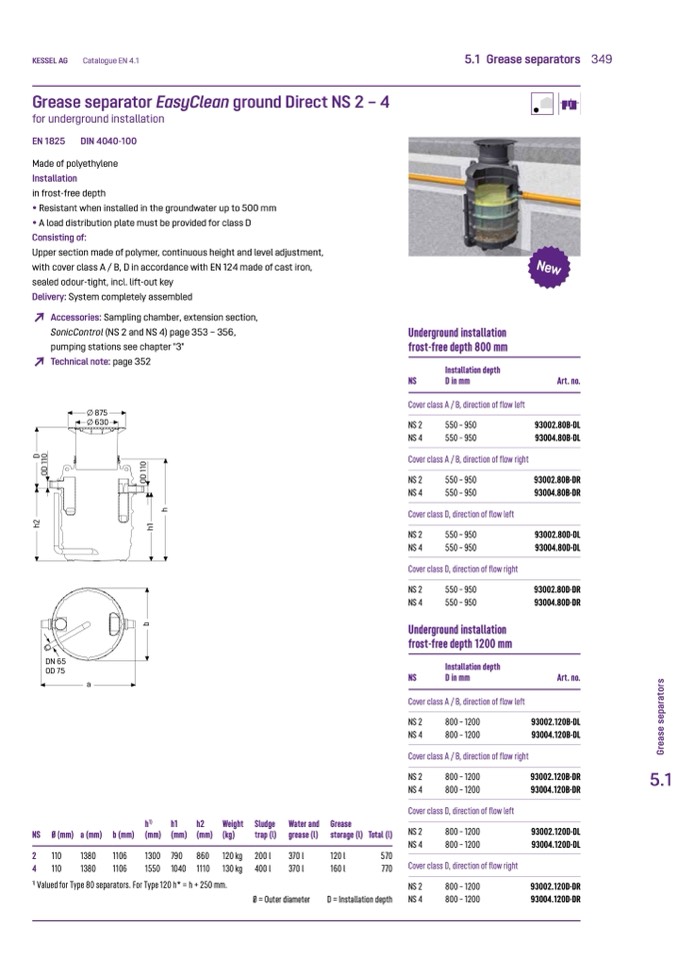

Grease separator EasyClean ground Direct NS 2 – 4

for underground installation

EN 1825

DIN 4040-100

Made of polyethylene

Installation

in frost-free depth

• Resistant when installed in the groundwater up to 500 mm

• A load distribution plate must be provided for class D

Consisting of:

Upper section made of polymer, continuous height and level adjustment,

with cover class A / B, D in accordance with EN 124 made of cast iron,

sealed odour-tight, incl. lift-out key

Delivery: System completely assembled

↗

Accessories: Sampling chamber, extension section,

SonicControl (NS 2 and NS 4) page 353 – 356,

Underground installation

frost-free depth 800 mm

Installation depth

NS

D in mm

Cover class A / B, direction of flow left

NS 2

550 – 950

NS 4

550 – 950

Cover class A / B, direction of flow right

NS 2

550 – 950

NS 4

550 – 950

Cover class D, direction of flow left

NS 2

550 – 950

NS 4

550 – 950

Cover class D, direction of flow right

NS 2

550 – 950

NS 4

550 – 950

Underground installation

frost-free depth 1200 mm

Installation depth

NS

D in mm

Cover class A / B, direction of flow left

NS 2

800 – 1200

NS 4

800 – 1200

Cover class A / B, direction of flow right

NS 2

800 – 1200

NS 4

800 – 1200

Cover class D, direction of flow left

NS 2

800 – 1200

NS 4

800 – 1200

Cover class D, direction of flow right

NS 2

800 – 1200

NS 4

800 – 1200

New

↗

pumping stations see chapter "3"

Technical note: page 352

875

630

Art. no.

93002.80B-DL

93004.80B-DL

93002.80B-DR

93004.80B-DR

93002.80D-DL

93004.80D-DL

93002.80D-DR

93004.80D-DR

Art. no.

93002.120B-DL

93004.120B-DL

93002.120B-DR

93004.120B-DR

93002.120D-DL

93004.120D-DL

93002.120D-DR

93004.120D-DR

DN 65

OD 75

Ø (mm)

a (mm)

b (mm)

a

DN 65

OD 75

a

G

r

e

a

s

e

s

e

p

a

r

a

t

o

r

s

b

h

1

O

D

1

1

0

h

h

2

D

O

D

1

1

0

b

h

1)

h1

h2

Weight Sludge Waterand Grease

(mm) (mm) (mm) (kg)

trap (l) grease (l) storage (l) Total (l)

NS

2

110

1380

1106

1300 790

860 120kg 200l

370l

120l

570

4

110

1380

1106

1550 1040 1110 130kg 400l

370l

160l

770

1)

Valued for Type 80 separators. For Type 120 h* = h + 250 mm.

Ø = Outer diameter

D = Installation depth

5.1
