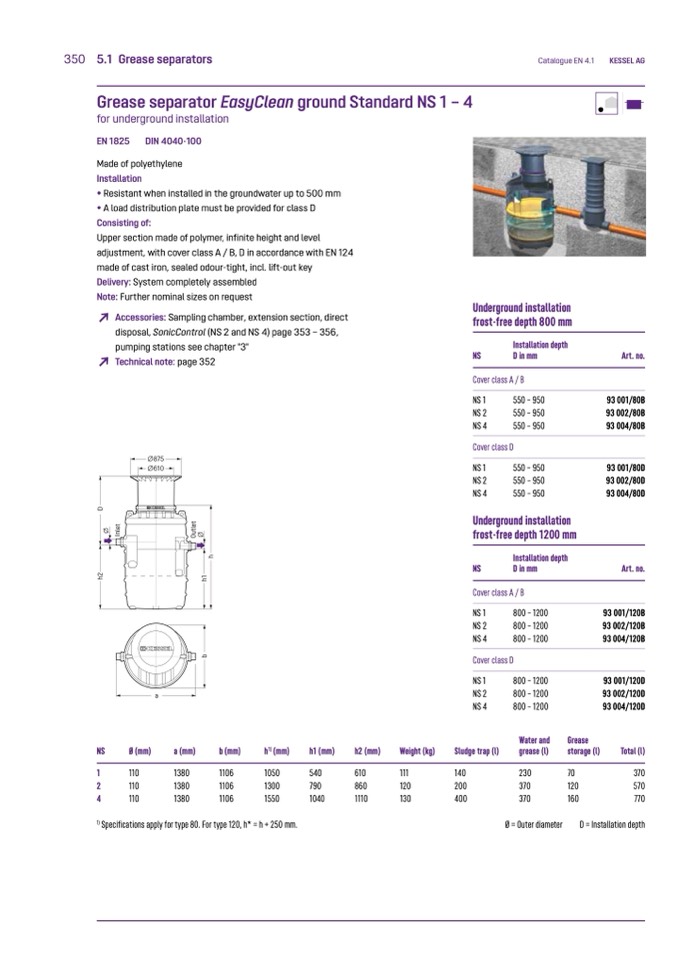

350 5.1 Grease separators

Grease separator EasyClean ground Standard NS 1 – 4

Catalogue EN 4.1

KESSEL AG

for underground installation

EN 1825

DIN 4040-100

Made of polyethylene

Installation

• Resistant when installed in the groundwater up to 500 mm

• A load distribution plate must be provided for class D

Consisting of:

Upper section made of polymer, infinite height and level

adjustment, with cover class A / B, D in accordance with EN 124

made of cast iron, sealed odour-tight, incl. lift-out key

Delivery: System completely assembled

Note: Further nominal sizes on request

↗

Accessories: Sampling chamber, extension section, direct

disposal, SonicControl (NS 2 and NS 4) page 353 – 356,

pumping stations see chapter "3"

Underground installation

frost-free depth 800 mm

Installation depth

NS

D in mm

Cover class A / B

NS1

550 – 950

NS2

550 – 950

NS4

550 – 950

Cover class D

NS1

550 – 950

NS2

550 – 950

NS4

550 – 950

Underground installation

frost-free depth 1200 mm

Installation depth

NS

D in mm

Cover class A / B

NS1

800 – 1200

NS2

800 – 1200

NS4

800 – 1200

Cover class D

NS1

800 – 1200

NS2

800 – 1200

NS4

800 – 1200

Art. no.

93 001/80B

93 002/80B

93 004/80B

93 001/80D

93 002/80D

93 004/80D

Art. no.

93 001/120B

93 002/120B

93 004/120B

93 001/120D

93 002/120D

93 004/120D

Total (l)

↗

Technical note: page 352

I

n

l

e

t

O

u

t

l

e

t

b

h

1

h

Ø

h

2

D

Ø

NS

Ø (mm)

1

110

2

110

4

110

a (mm)

1380

1380

1380

b (mm)

1106

1106

1106

h

1)

(mm)

1050

1300

1550

+ 250 mm.

h1 (mm)

540

790

1040

h2 (mm)

610

860

1110

Weight (kg)

111

120

130

Sludge trap (l)

140

200

400

Water and

grease (l)

230

370

370

Ø = Outer diameter

Grease

storage (l)

Ø875

Ø610

a

1)

Specifications apply for type 80. For type 120, h* = h

70

370

120

570

160

770

D = Installation depth
