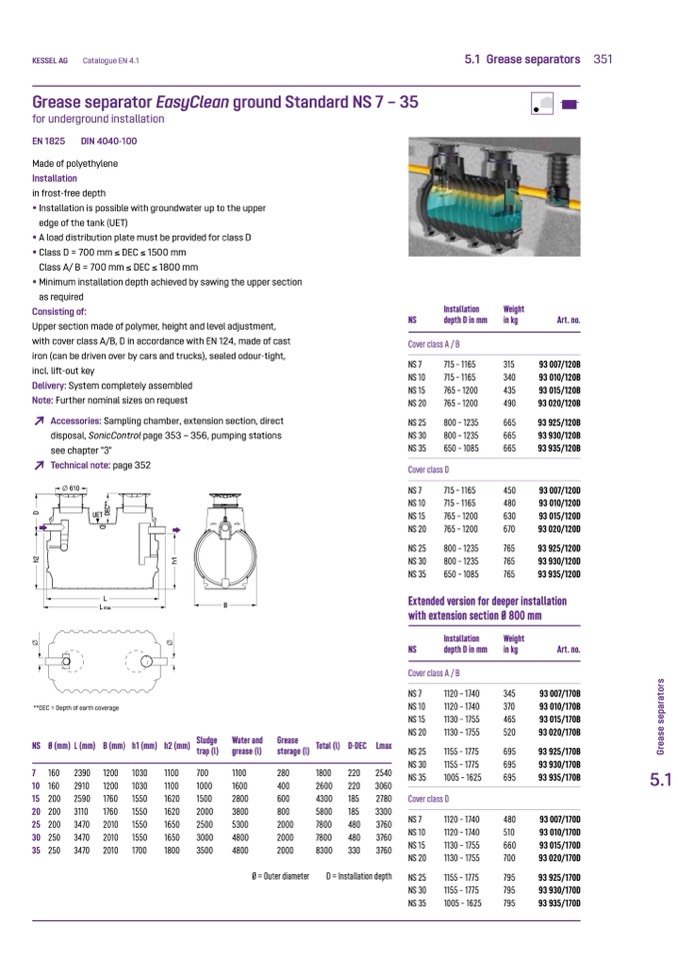

Grease separator EasyClean ground Standard NS 7 – 35
for underground installation
EN 1825
DIN 4040-100
Made of polyethylene
Installation
in frost-free depth
• Installation is possible with groundwater up to the upper
edge of the tank (UET)
• A load distribution plate must be provided for class D
• Class D = 700 mm ≤ DEC ≤ 1500 mm
Class A/ B = 700 mm ≤ DEC ≤ 1800 mm
• Minimum installation depth achieved by sawing the upper section
as required
Consisting of:
Upper section made of polymer, height and level adjustment,
with cover class A/B, D in accordance with EN 124, made of cast
iron (can be driven over by cars and trucks), sealed odour-tight,
incl. lift-out key
Delivery: System completely assembled
Note: Further nominal sizes on request
↗
Accessories: Sampling chamber, extension section, direct
disposal, SonicControl page 353 – 356, pumping stations
see chapter "3"
↗
Technical note: page 352
610
Cover class D
UET
L
L
maaxx
**DEC = Depth of earth coverage
NS7
NS 10
NS 15
NS 20
NS 25
NS 30
NS 35
715 – 1165
715 – 1165
765 – 1200
765 – 1200
800 – 1235
800 – 1235
650 – 1085
NS Ø (mm) L (mm)
B (mm)
1200
1200
1760
1760
2010
2010
2010
h1 (mm)
1030
1030
1550
1550
1550
1550
1700
h2 (mm)
1100
1100
1620
1620
1650
1650
1800
Grease
storage (l)
280
400
600
800
2000
2000
2000
Ø = Outer diameter
Total (l)
1800
2600
4300
5800
7800
7800
8300
D-DEC Lmax
220
2540
220
3060
185
2780
185
3300
480
3760
480
3760
330
3760
7 160
10 160
15 200
20 200
25 200
30 250
35 250
2390
2910
2590
3110
3470
3470
3470
1100
1600
2800
3800
5300
4800
4800
