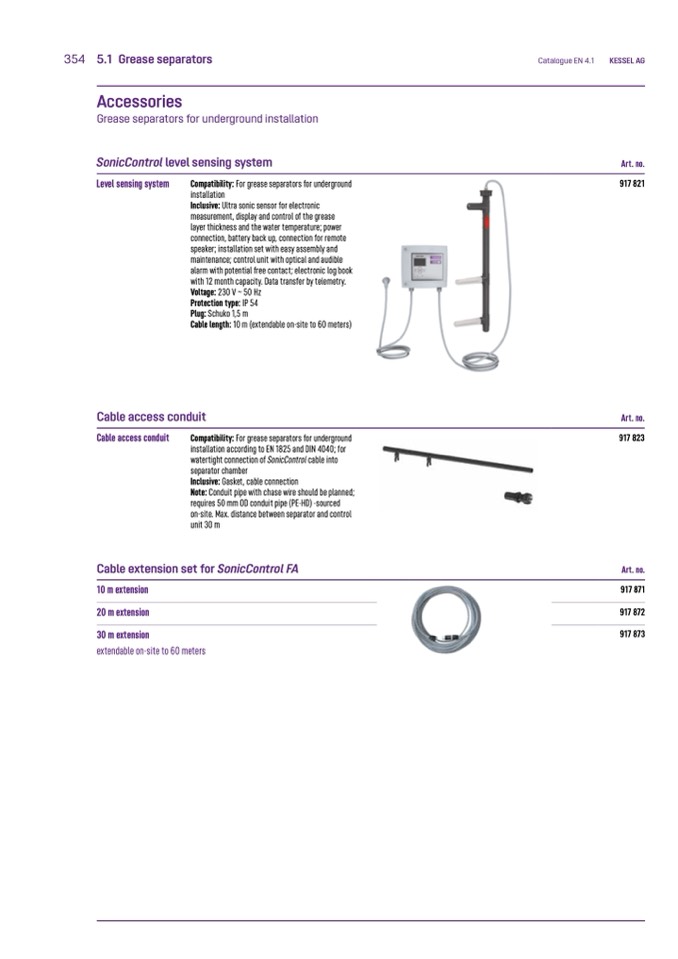

354 5.1 Grease separators

Accessories

Grease separators for underground installation

SonicControl level sensing system

Catalogue EN 4.1

KESSEL AG

Art. no.

917 821

Level sensing system

Compatibility: For grease separators for underground

installation

Inclusive: Ultra sonic sensor for electronic

measurement, display and control of the grease

layer thickness and the water temperature; power

connection, battery back up, connection for remote

speaker; installation set with easy assembly and

maintenance; control unit with optical and audible

alarm with potential free contact; electronic log book

with 12 month capacity. Data transfer by telemetry.

Voltage: 230 V ~ 50 Hz

Protection type: IP 54

Plug: Schuko 1,5 m

Cable length: 10 m (extendable on-site to 60 meters)

Cable access conduit

Art. no.

917 823

Art. no.

917 871

917 872

917 873

Cable access conduit

Compatibility: For grease separators for underground

installation according to EN 1825 and DIN 4040; for

watertight connection of SonicControl cable into

separator chamber

Inclusive: Gasket, cable connection

Note: Conduit pipe with chase wire should be planned;

requires 50 mm OD conduit pipe (PE-HD) -sourced

on-site. Max. distance between separator and control

unit 30 m

Cable extension set for SonicControl FA

10 m extension

20 m extension

30 m extension

extendable on-site to 60 meters
