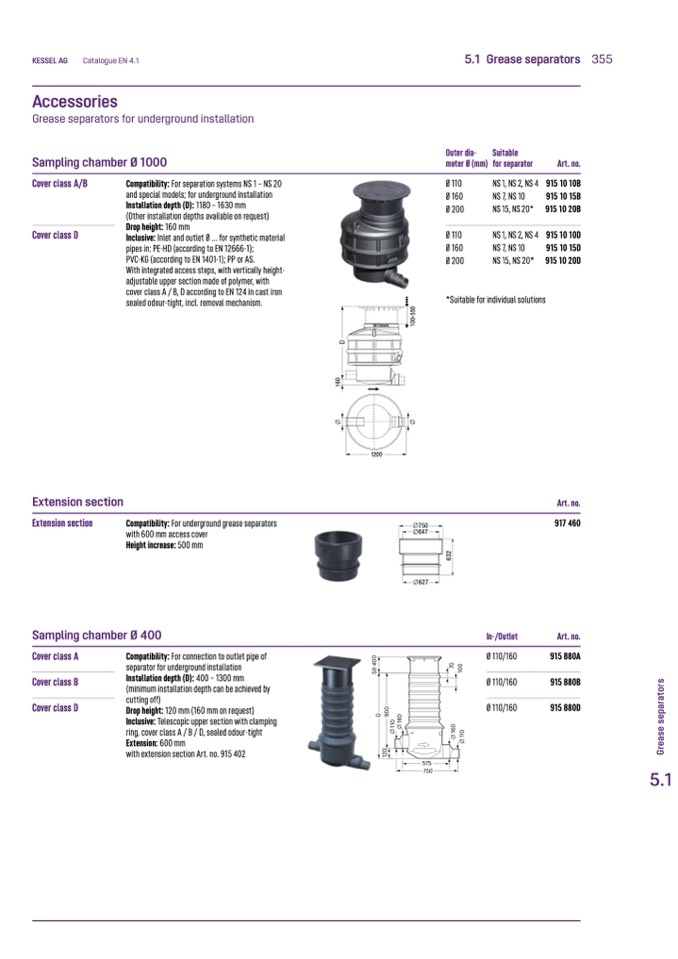

KESSEL AG

Catalogue EN 4.1

5.1 Grease separators 355

Accessories

Grease separators for underground installation

Sampling chamber Ø 1000

Outer dia-

meter Ø (mm)

Ø 110

Ø160

Ø 200

Ø 110

Ø 160

Ø 200

Suitable

for separator

Art. no.

NS1,NS2,NS4 9151010B

NS7,NS10

9151015B

NS 15, NS 20* 915 10 20B

NS1,NS2,NS4 9151010D

NS7,NS10

9151015D

NS 15, NS 20* 915 10 20D

Cover class A/B

Cover class D

Compatibility: For separation systems NS 1 – NS 20

and special models; for underground installation

Installation depth (D): 1180 – 1630 mm

(Other installation depths available on request)

Drop height: 160 mm

Inclusive: Inlet and outlet Ø ... for synthetic material

pipes in: PE-HD (according to EN 12666-1);

PVC-KG (according to EN 1401-1); PP or AS.

With integrated access steps, with vertically height-

adjustable upper section made of polymer, with

cover class A / B, D according to EN 124 in cast iron

sealed odour-tight, incl. removal mechanism.

Extension section

Extension section

Compatibility: For underground grease separators

with 600 mm access cover

Height increase: 500 mm

750

647

627

Art. no.

917 460

Art. no.

915 880A

915 880B

915 880D

Sampling chamber Ø 400

In-/Outlet

Ø 110/160

Ø 110/160

Ø 110/160

Cover class A

Cover class B

Cover class D

Compatibility: For connection to outlet pipe of

separator for underground installation

Installation depth (D): 400 – 1300 mm

(minimum installation depth can be achieved by

cutting off)

Drop height: 120 mm (160 mm on request)

Inclusive: Telescopic upper section with clamping

ring, cover class A / B / D, sealed odour-tight

Extension: 600 mm

with extension section Art. no. 915 402

1200

1

2

0

Ø

1

1

0

Ø

1

6

0

Ø

1

1

0

7

0

1

0

0

6

3

2

Ø

1

6

0

G

r

e

a

s

e

s

e

p

a

r

a

t

o

r

s

D

9

0

0

5

0

-

4

0

0

1

6

0

D

1

0

0

-

5

5

0

575

750

5.1

*Suitable for individual solutions
