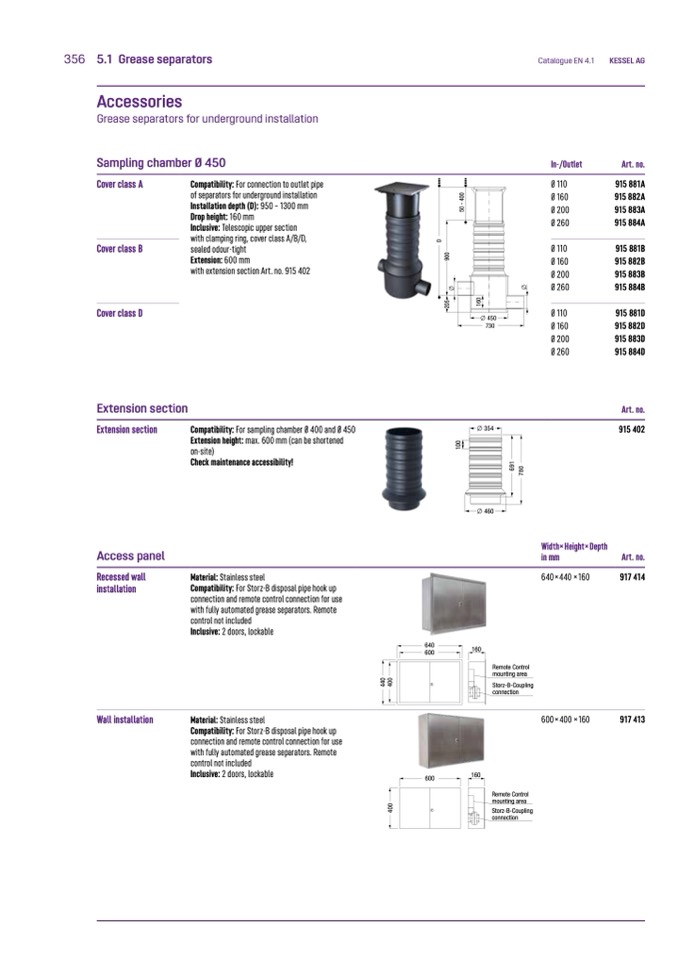

356 5.1 Grease separators
Accessories
Grease separators for underground installation
Sampling chamber Ø 450
Catalogue EN 4.1
In-/Outlet
Ø 110
Ø 160
Ø 200
Ø 260
Ø 110
Ø 160
Ø 200
Ø 260
Ø 110
Ø 160
Ø 200
Ø 260
KESSEL AG
Art. no.
915 881A
915 882A
915 883A
915 884A
915 881B
915 882B
915 883B
915 884B
915 881D
915 882D
915 883D
915 884D
Art. no.
915 402
Art. no.
917 414
917 413
Cover class A
Cover class B
Cover class D
Extension section
Extension section
Access panel
Recessed wall
installation
Wall installation
Compatibility: For connection to outlet pipe
of separators for underground installation
Installation depth (D): 950 – 1300 mm
Drop height: 160 mm
Inclusive: Telescopic upper section
with clamping ring, cover class A/B/D,
sealed odour-tight
Extension: 600 mm
with extension section Art. no. 915 402
Compatibility: For sampling chamber Ø 400 and Ø 450
Extension height: max. 600 mm (can be shortened
on-site)
Check maintenance accessibility!
Material: Stainless steel
Compatibility: For Storz-B disposal pipe hook up
connection and remote control connection for use
with fully automated grease separators. Remote
control not included
Inclusive: 2 doors, lockable
Material: Stainless steel
Compatibility: For Storz-B disposal pipe hook up
connection and remote control connection for use
with fully automated grease separators. Remote
control not included
Inclusive: 2 doors, lockable
450
730
354
460
Width× Height× Depth
in mm
640 × 440 × 160
640 640
600 600
600 600
160 160
RemoRteemContetroClontrol
mountminoguanrtienag area
Storz-SBt-oCrzo-uBp-liCnogupling
connecotinonection
600 × 400 × 160
160
160
RemotReeCmoontteroClontrol
mountminoguanrteinagarea
Storz-SBt-oCrozu-Bp-liCnogupling
connecotinonection
4
4
0
4
0
0
4
0
0
4
4
0
4
0
0
4
0
0
6
9
1
7
8
0
1
0
0
5
0
-
4
0
0
2
0
5
9
0
0
1
6
0
D
