Free-standing set-up

The EasyClean free SkimTech grease separator is installed freely accessible in the

building, typically in the basement. Quite often, the space available is not ideal for large

separator systems. For this reason, the grease separator is particularly slim and can be

set up compactly next to the wall. Once the EasyClean free SkimTech has been set up,

the compact collecting tanks can simply be removed by hand when full. This makes the

SkimTech grease separator the ideal solution wherever disposal vehicles cannot access

the separator.

1

2

5

6

4

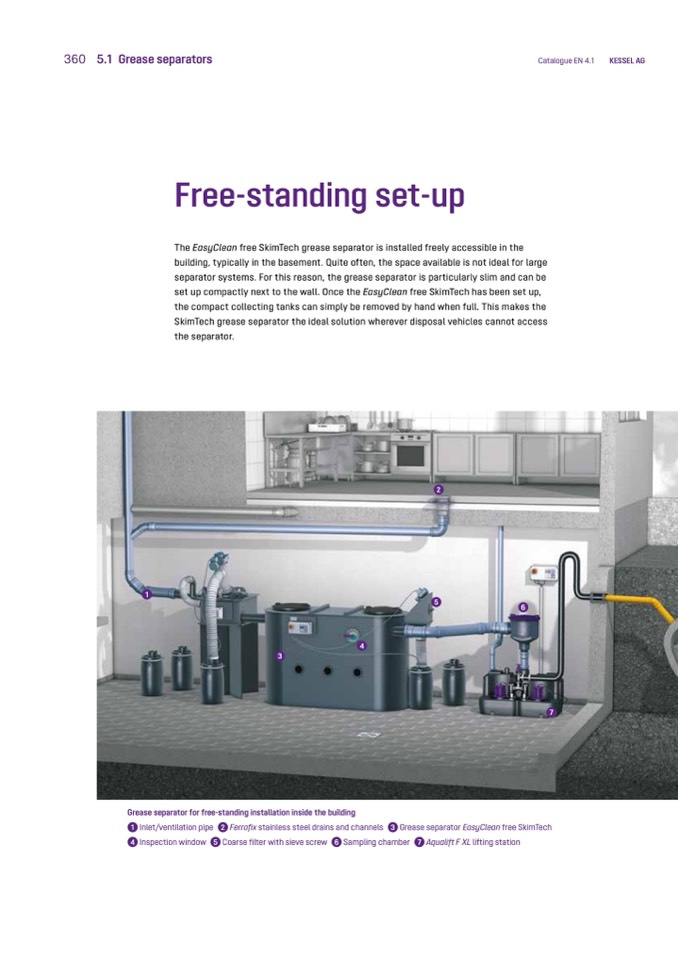

Grease separator for free-standing installation inside the building

3

1 Inlet/ventilation pipe 2 Ferrofix stainless steel drains and channels

4 Inspection window 5 Coarse filter with sieve screw 6 Sampling chamber 7 Aqualift F XL lifting station

3 Grease separator EasyClean free SkimTech

7
