KESSEL AG

Catalogue EN 4.1

5.1

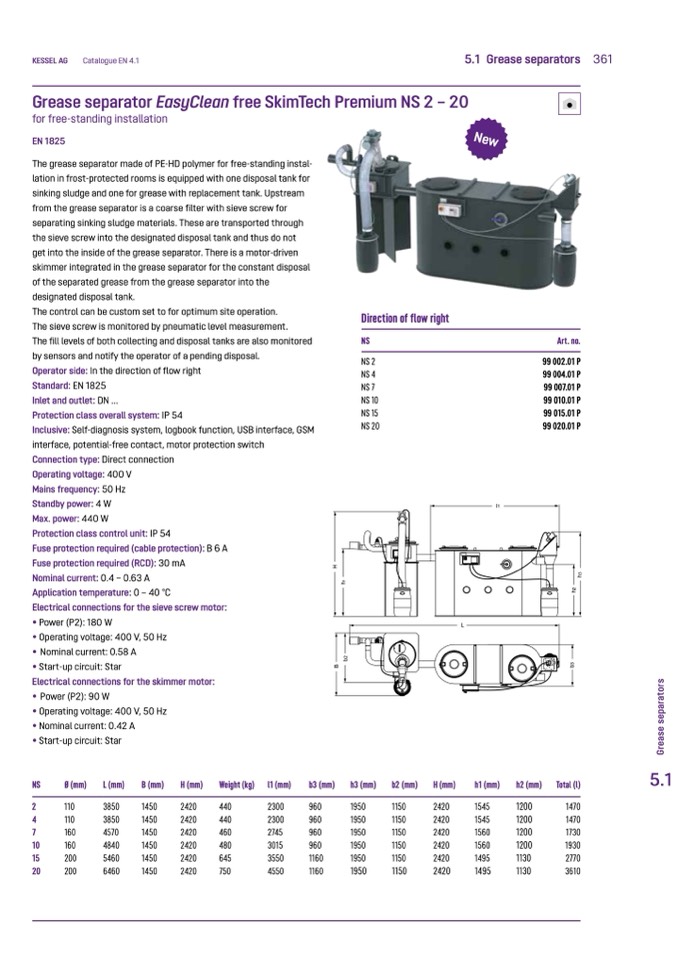

Grease separator EasyClean free SkimTech Premium NS 2 – 20

for free-standing installation

EN 1825

The grease separator made of PE-HD polymer for free-standing instal-

lation in frost-protected rooms is equipped with one disposal tank for

sinking sludge and one for grease with replacement tank. Upstream

from the grease separator is a coarse filter with sieve screw for

separating sinking sludge materials. These are transported through

the sieve screw into the designated disposal tank and thus do not

get into the inside of the grease separator. There is a motor-driven

skimmer integrated in the grease separator for the constant disposal

of the separated grease from the grease separator into the

designated disposal tank.

The control can be custom set to for optimum site operation.

The sieve screw is monitored by pneumatic level measurement.

The fill levels of both collecting and disposal tanks are also monitored

by sensors and notify the operator of a pending disposal.

Operator side: In the direction of flow right

Standard: EN 1825

Inlet and outlet: DN ...

Protection class overall system: IP 54

Inclusive: Self-diagnosis system, logbook function, USB interface, GSM

interface, potential-free contact, motor protection switch

Connection type: Direct connection

Operating voltage: 400 V

Mains frequency: 50 Hz

Standby power: 4 W

Max. power: 440 W

Protection class control unit: IP 54

Fuse protection required (cable protection): B 6 A

Fuse protection required (RCD): 30 mA

Nominal current: 0.4 – 0.63 A

Application temperature: 0 – 40 °C

Electrical connections for the sieve screw motor:

• Power (P2): 180 W

• Operating voltage: 400 V, 50 Hz

• Nominal current: 0.58 A

• Start-up circuit: Star

Electrical connections for the skimmer motor:

• Power (P2): 90 W

• Operating voltage: 400 V, 50 Hz

• Nominal current: 0.42 A

• Start-up circuit: Star

Grease separators 361

New

NS

Ø (mm)

2

110

4

110

7

160

10

160

15

200

20

200

L (mm)

3850

3850

4570

4840

5460

6460

B (mm)

1450

1450

1450

1450

1450

1450

H (mm)

2420

2420

2420

2420

2420

2420

Weight (kg)

440

440

460

480

645

750

l1 (mm)

2300

2300

2745

3015

3550

4550

b3 (mm)

b2 (mm)

H (mm)

h1 (mm)

h2 (mm)

Direction of flow right

NS

NS 2

NS 4

NS 7

NS 10

NS 15

NS 20

Art. no.

99 002.01 P

99 004.01 P

99 007.01 P

99 010.01 P

99 015.01 P

99 020.01 P

G

r

e

a

s

e

s

e

p

a

r

a

t

o

r

s

B

b

2

H

h

1

b

3

h

2

h

3

h3 (mm)

960

960

960

960

1160

1160

1950

1150

2420

1495

Total (l)

3

5.1

1950

1950

1950

1950

1950

1150

1150

1150

1150

1150

2420

2420

2420

2420

2420

1545

1545

1560

1560

1495

1200

1470

1200

1470

1200

1730

1200

1930

1130

2770

1130

3610

L

l1
