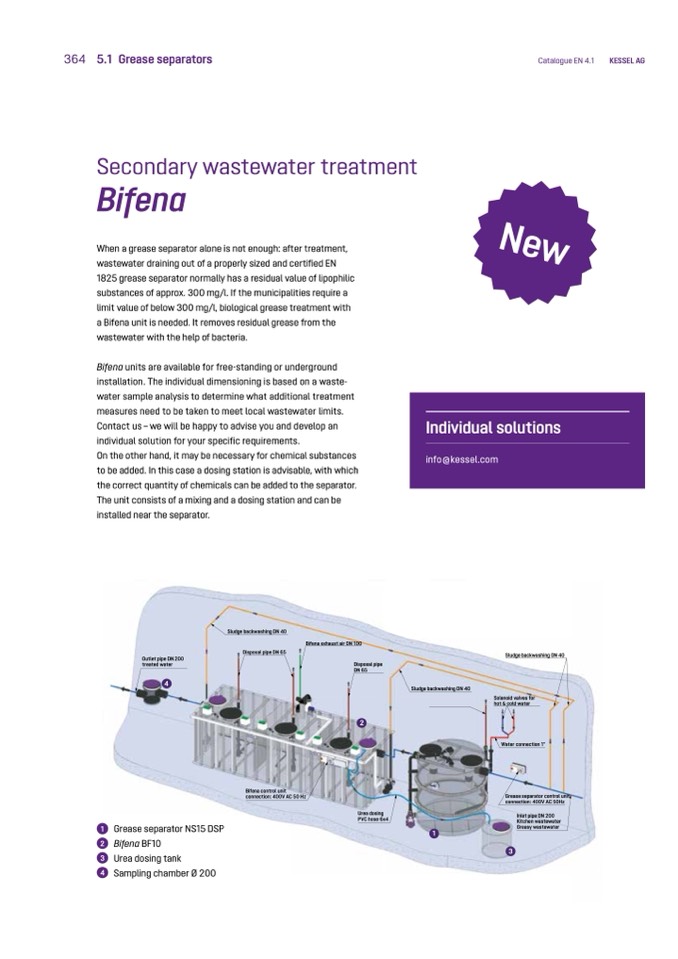

364 5.1 Grease separators
Catalogue EN 4.1
KESSEL AG
Secondary wastewater treatment
Bifena
When a grease separator alone is not enough: after treatment,
wastewater draining out of a properly sized and certified EN
1825 grease separator normally has a residual value of lipophilic
substances of approx. 300 mg/l. If the municipalities require a
limit value of below 300 mg/l, biological grease treatment with
a Bifena unit is needed. It removes residual grease from the
wastewater with the help of bacteria.
Bifena units are available for free-standing or underground
installation. The individual dimensioning is based on a waste-
water sample analysis to determine what additional treatment
measures need to be taken to meet local wastewater limits.
Contact us – we will be happy to advise you and develop an
individual solution for your specific requirements.
On the other hand, it may be necessary for chemical substances
to be added. In this case a dosing station is advisable, with which
the correct quantity of chemicals can be added to the separator.
The unit consists of a mixing and a dosing station and can be
installed near the separator.
Individual solutions
info @ kessel.com
Sludge backwashing DN 40
Disposal pipe DN 65
Bifena exhaust air DN 100
Disposal pipe
DN 65
2
Urea dosing
PVC hose 6x4
Sludge backwashing DN 40
Solenoid valves for
hot & cold water
Water connection 1"
Grease separator control unit
connection: 400V AC 50Hz
Inlet pipe DN 200
Kitchen wastewater
Greasy wastewater
3
Outlet pipe DN 200
treated water
4
1 Grease separator NS15 DSP
2 Bifena BF10
3 Urea dosing tank
4 Sampling chamber Ø 200
Bifena control unit
connection: 400V AC 50 Hz
Sludge backwashing DN 40
1
1
2
3
4
New
