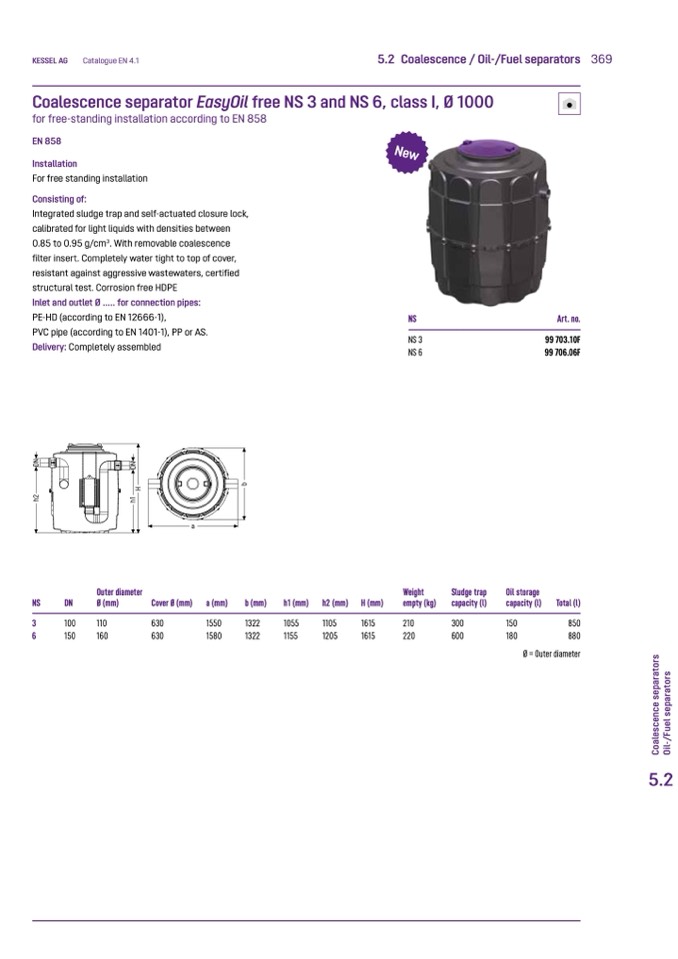

Coalescence separator EasyOil free NS 3 and NS 6, class I, Ø 1000

for free-standing installation according to EN 858

EN 858

Installation

For free standing installation

Consisting of:

Integrated sludge trap and self-actuated closure lock,

calibrated for light liquids with densities between

0.85 to 0.95 g/cm

3

. With removable coalescence

filter insert. Completely water tight to top of cover,

resistant against aggressive wastewaters, certified

structural test. Corrosion free HDPE

Inlet and outlet Ø ..... for connection pipes:

PE-HD (according to EN 12666-1),

PVC pipe (according to EN 1401-1), PP or AS.

Delivery: Completely assembled

New

a

6

150

160

630

1580

1322

1155

1205

1615

220

600

180

880

Ø = Outer diameter

Outer diameter

NS

DN

Ø (mm)

Cover Ø (mm)

Weight

empty (kg)

Sludge trap

capacity (l)

Oil storage

capacity (l)

a (mm)

3

100

110

630

1550

1322

1055

1105

1615

210

300

150

850

b (mm)

h1 (mm)

h2 (mm)

H (mm)

Total (l)

NS

NS 3

NS 6

Art. no.

99 703.10F

99 706.06F
