372 5.2 Coalescence / Oil-/Fuel separators

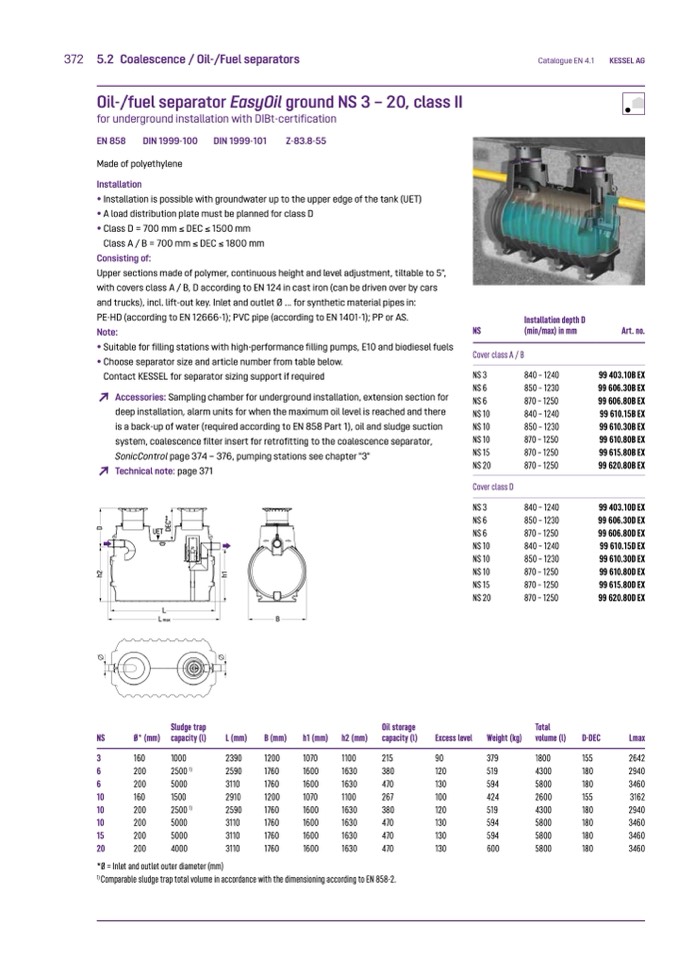

Oil-/fuel separator EasyOil ground NS 3 – 20, class II

Catalogue EN 4.1

KESSEL AG

h

1

h

2

D

h

2

D

h

1

h

1

D

E

C

*

*

D

E

C

*

*

B

NS

Ø* (mm)

3

160

6

200

6

200

10

160

10

200

10

200

15

200

20

200

Sludge trap

capacity (l)

1000

2500

1)

5000

1500

2500

1)

5000

5000

4000

L (mm)

2390

2590

3110

2910

2590

3110

3110

3110

h1 (mm)

1070

1600

1600

1070

1600

1600

1600

1600

h2 (mm)

1100

1630

1630

1100

1630

1630

1630

1630

Oil storage

capacity (l)

215

380

470

267

380

470

470

470

Excess level

90

120

130

100

120

130

130

130

for underground installation with DIBt-certification

EN 858

DIN 1999-100

DIN 1999-101

Z-83.8-55

Made of polyethylene

Installation

• Installation is possible with groundwater up to the upper edge of the tank (UET)

• A load distribution plate must be planned for class D

• Class D = 700 mm ≤ DEC ≤ 1500 mm

Class A / B = 700 mm ≤ DEC ≤ 1800 mm

Consisting of:

Upper sections made of polymer, continuous height and level adjustment, tiltable to 5°,

with covers class A / B, D according to EN 124 in cast iron (can be driven over by cars

and trucks), incl. lift-out key. Inlet and outlet Ø ... for synthetic material pipes in:

PE-HD (according to EN 12666-1); PVC pipe (according to EN 1401-1); PP or AS.

Note:

• Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels

• Choose separator size and article number from table below.

Contact KESSEL for separator sizing support if required

↗

Accessories: Sampling chamber for underground installation, extension section for

deep installation, alarm units for when the maximum oil level is reached and there

is a back-up of water (required according to EN 858 Part 1), oil and sludge suction

system, coalescence filter insert for retrofitting to the coalescence separator,

SonicControl page 374 – 376, pumping stations see chapter "3"

Installation depth D

(min/max) in mm

840 – 1240

850 – 1230

870 – 1250

840 – 1240

850 – 1230

870 – 1250

870 – 1250

870 – 1250

840 – 1240

850 – 1230

870 – 1250

840 – 1240

850 – 1230

870 – 1250

870 – 1250

870 – 1250

Total

volume (l)

1800

4300

5800

2600

4300

5800

5800

5800

↗

Technical note: page 371

UET UET

L

L

L

max

L

max

B B

B (mm)

1200

1760

1760

1200

1760

1760

1760

1760

NS

Cover class A / B

NS3

NS6

NS6

NS 10

NS 10

NS 10

NS 15

NS 20

Cover class D

NS3

NS6

NS6

NS 10

NS 10

NS 10

NS 15

NS 20

Weight (kg)

379

519

594

424

519

594

594

600

Art. no.

99 403.10B EX

99 606.30B EX

99 606.80B EX

99 610.15B EX

99 610.30B EX

99 610.80B EX

99 615.80B EX

99 620.80B EX

99 403.10D EX

99 606.30D EX

99 606.80D EX

99 610.15D EX

99 610.30D EX

99 610.80D EX

99 615.80D EX

99 620.80D EX

D-DEC

Lmax

155

2642

180

2940

180

3460

155

3162

180

2940

180

3460

180

3460

180

3460

*Ø = Inlet and outlet outer diameter (mm)

1)

Comparable sludge trap total volume in accordance with the dimensioning according to EN 858-2.
