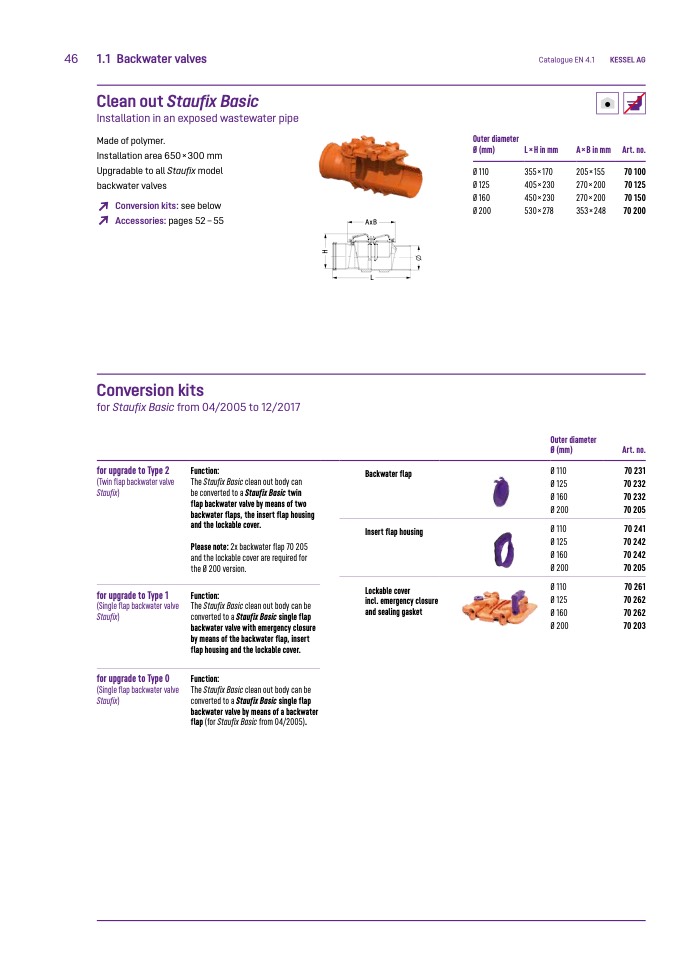

46 1.1 Backwater valves

Clean out Staufix Basic

Installation in an exposed wastewater pipe

Made of polymer.

Installation area 650×300 mm

Upgradable to all Staufix model

backwater valves

↗

Conversion kits: see below

↗

Accessories: pages 52 – 55

Catalogue EN 4.1

KESSEL AG

AxB

L

Outer diameter

Ø(mm)

L×Hinmm

A×Binmm Art.no.

Ø 110

Ø 125

Ø 160

Ø 200

355×170

405×230

450×230

530×278

205 × 155

270 × 200

270 × 200

353 × 248

70 100

70 125

70 150

70 200

Conversion kits

for Staufix Basic from 04/2005 to 12/2017

for upgrade to Type 2

(Twin flap backwater valve

Staufix)

for upgrade to Type 1

(Single flap backwater valve

Staufix)

for upgrade to Type 0

(Single flap backwater valve

Staufix)

Function:

The Staufix Basic clean out body can

be converted to a Staufix Basic twin

flap backwater valve by means of two

backwater flaps, the insert flap housing

and the lockable cover.

Please note: 2x backwater flap 70 205

and the lockable cover are required for

the Ø 200 version.

Function:

The Staufix Basic clean out body can be

converted to a Staufix Basic single flap

backwater valve with emergency closure

by means of the backwater flap, insert

flap housing and the lockable cover.

Function:

The Staufix Basic clean out body can be

converted to a Staufix Basic single flap

backwater valve by means of a backwater

flap (for Staufix Basic from 04/2005).

Backwater flap

Insert flap housing

Lockable cover

incl. emergency closure

and sealing gasket

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200

Ø 110

Ø 125

Ø 160

Ø 200

Ø 110

Ø 125

Ø 160

Ø 200

Art. no.

70 231

70 232

70 232

70 205

70 241

70 242

70 242

70 205

70 261

70 262

70 262

70 203
