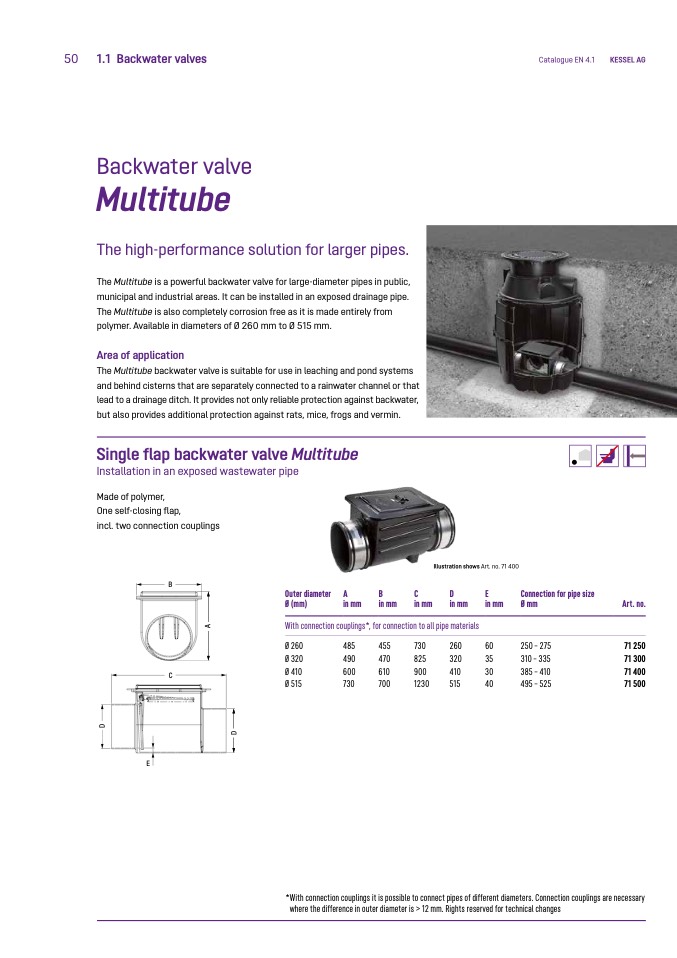

Backwater valve

Multitube

The high-performance solution for larger pipes.

The Multitube is a powerful backwater valve for large-diameter pipes in public,

municipal and industrial areas. It can be installed in an exposed drainage pipe.

The Multitube is also completely corrosion free as it is made entirely from

polymer. Available in diameters of Ø 260 mm to Ø 515 mm.

Area of application

The Multitube backwater valve is suitable for use in leaching and pond systems

and behind cisterns that are separately connected to a rainwater channel or that

lead to a drainage ditch. It provides not only reliable protection against backwater,

but also provides additional protection against rats, mice, frogs and vermin.

C

Single flap backwater valve Multitube

Installation in an exposed wastewater pipe

Made of polymer,

One self-closing flap,

incl. two connEection couplings

B

C

E

B

Illustration shows Art. no. 71 400

D

E

Outer diameter A

Ø(mm)

inmm

inmm

inmm

inmm

inmm

Ømm

B

C

Connection for pipe size

Art.no.

71250

71300

71400

71500

With connection couplings*, for connection to all pipe materials

Ø260

485

455

730

260

60

250–275

Ø320

490

470

825

320

35

310–335

Ø410

600

610

900

410

30

385–410

Ø515

730

700

1230

515

40

495–525

*With connection couplings it is possible to connect pipes of different diameters. Connection couplings are necessary

where the difference in outer diameter is > 12 mm. Rights reserved for technical changes
