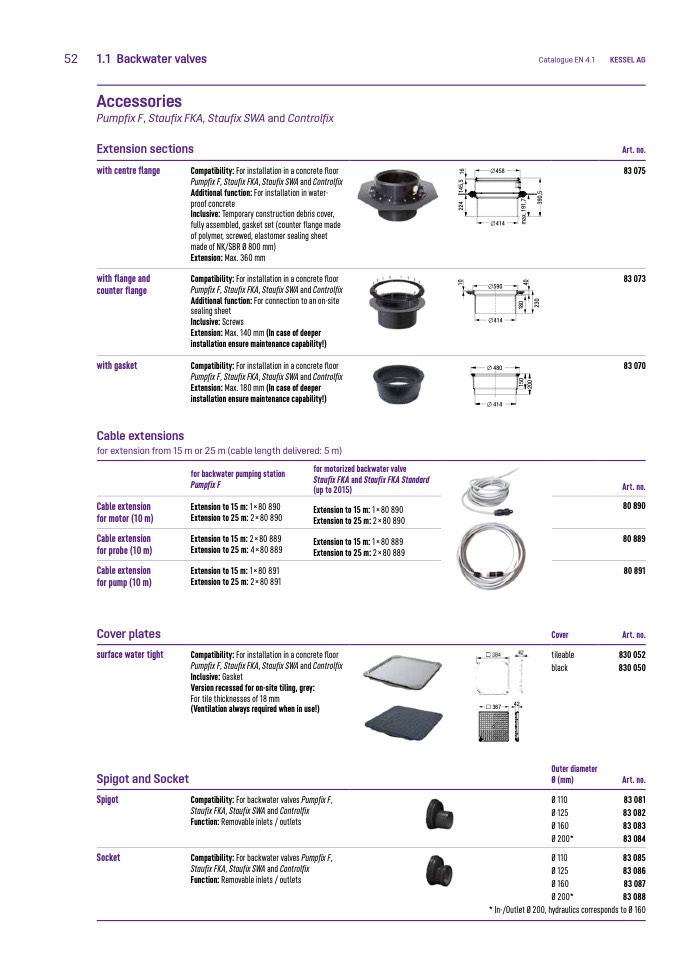

52

1.1 Backwater valves

Accessories

Pumpfix F, Staufix FKA, Staufix SWA and Controlfix

Extension sections

Catalogue EN 4.1

KESSEL AG

Art. no.

83 075

83 073

83 070

Art. no.

80 890

80 889

80 891

Art. no.

830 052

830 050

Art. no.

83 081

83 082

83 083

83 084

83 085

83 086

83 087

83 088

with centre flange

with flange and

counter flange

with gasket

Cable extensions

Compatibility: For installation in a concrete floor

Pumpfix F, Staufix FKA, Staufix SWA and Controlfix

Additional function: For installation in water-

proof concrete

Inclusive: Temporary construction debris cover,

fully assembled, gasket set (counter flange made

of polymer, screwed, elastomer sealing sheet

made of NK/SBR Ø 800 mm)

Extension: Max. 360 mm

Compatibility: For installation in a concrete floor

Pumpfix F, Staufix FKA, Staufix SWA and Controlfix

Additional function: For connection to an on-site

sealing sheet

Inclusive: Screws

Extension: Max. 140 mm (In case of deeper

installation ensure maintenance capability!)

Compatibility: For installation in a concrete floor

Pumpfix F, Staufix FKA, Staufix SWA and Controlfix

Extension: Max. 180 mm (In case of deeper

installation ensure maintenance capability!)

458

414

590

414

480

414

1

5

0

1

8

0

m

a

x

.

1

9

1

,

7

3

9

0

,

5

2

0

0

4

0

2

3

0

1

0

2

2

4

1

4

5

,

5

1

6

for extension from 15 m or 25 m (cable length delivered: 5 m)

Cable extension

for motor (10 m)

Cable extension

for probe (10 m)

Cable extension

for pump (10 m)

Cover plates

surface water tight

Spigot and Socket

Spigot

Socket

for backwater pumping station

Pumpfix F

Extension to 15 m: 1 × 80 890

Extension to 25 m: 2 × 80 890

Extension to 15 m: 2 × 80 889

Extension to 25 m: 4 × 80 889

Extension to 15 m: 1 × 80 891

Extension to 25 m: 2 × 80 891

for motorized backwater valve

Staufix FKA and Staufix FKA Standard

(up to 2015)

Extension to 15 m: 1 × 80 890

Extension to 25 m: 2 × 80 890

Extension to 15 m: 1 × 80 889

Extension to 25 m: 2 × 80 889

Compatibility: For installation in a concrete floor

Pumpfix F, Staufix FKA, Staufix SWA and Controlfix

Inclusive: Gasket

Version recessed for on-site tiling, grey:

For tile thicknesses of 18 mm

(Ventilation always required when in use!)

Compatibility: For backwater valves Pumpfix F,

Staufix FKA, Staufix SWA and Controlfix

Function: Removable inlets / outlets

Compatibility: For backwater valves Pumpfix F,

Staufix FKA, Staufix SWA and Controlfix

Function: Removable inlets / outlets

367

42

Cover

tileable

black

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200*

Ø 110

Ø 125

Ø 160

Ø 200*

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
