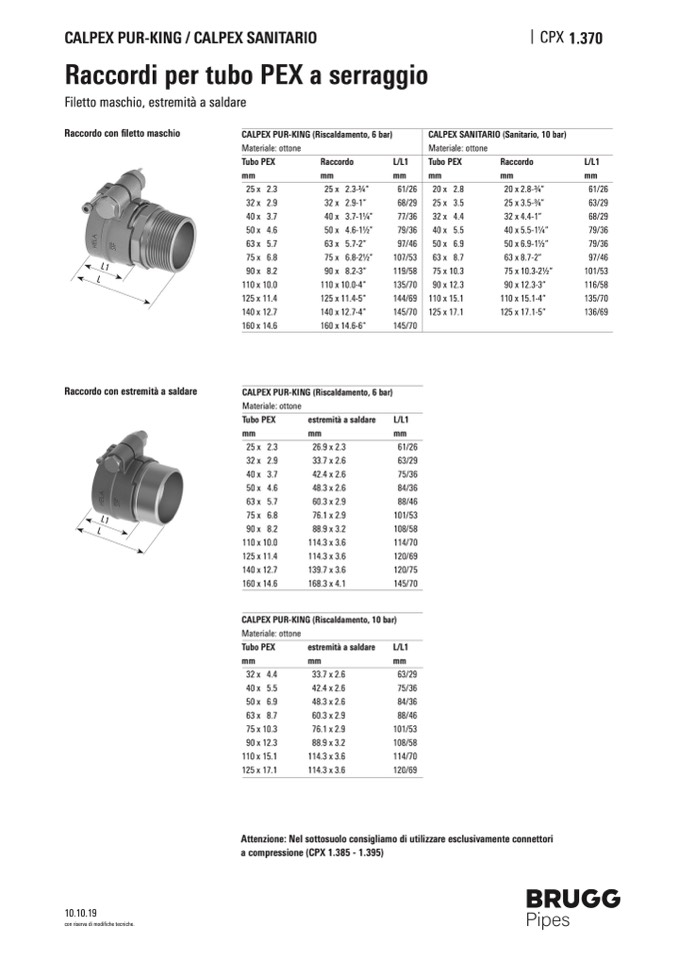

CPX 1.370
CALPEX SANITARIO (Sanitario, 10 bar)
Materiale: ottone
Tubo PEX
mm
mm
m
m
mm
mm
mm
CALPEX PUR-KING / CALPEX SANITARIO
Raccordi per tubo PEX a serraggio
Filetto maschio, estremità a saldare
Raccordo con filetto maschio
CALPEX PUR-KING (Riscaldamento, 6 bar)
Materiale: ottone
Raccordo
L/L1
Tubo PEX
Raccordo
L/L1
25x 2.3
32x 2.9
40x 3.7
50x 4.6
63x 5.7
75x 6.8
90x 8.2
110 x 10.0
125 x 11.4
140 x 12.7
160 x 14.6
25x
32x
40x
50x
63x
75x
90x
110 x
125 x
140 x
160 x
2.3-3⁄4“
61/26
2.9-1“
68/29
3.7-11⁄4“
77/36
4.6-11⁄2“
79/36
5.7-2“
97/46
6.8-21⁄2“
107/53
8.2-3“
119/58
10.0-4“
135/70
11.4-5“
144/69
12.7-4“
145/70
14.6-6“
145/70
20x 2.8
25x 3.5
32x 4.4
40x 5.5
50x 6.9
63x 8.7
75x 10.3
90x 12.3
110 x 15.1
125 x 17.1
20 x 2.8-3⁄4“
25 x 3.5-3⁄4“
32 x 4.4-1“
40 x 5.5-11⁄4“
50 x 6.9-11⁄2“
63 x 8.7-2“
75 x 10.3-21⁄2“
90 x 12.3-3“
110 x 15.1-4“
125 x 17.1-5“
61/26
63/29
68/29
79/36
79/36
97/46
101/53
116/58
135/70
136/69
Raccordo con estremità a saldare
CALPEX PUR-KING (Riscaldamento, 6 bar)
Materiale:
Tubo PEX
mm
25x 2.3
32x 2.9
40x 3.7
50x 4.6
63x 5.7
75x 6.8
90x 8.2
110 x 10.0
125 x 11.4
140 x 12.7
160 x 14.6
ottone
estremità a saldare
L/L1
mm
mm
26.9 x 2.3
61/26
33.7 x 2.6
63/29
42.4 x 2.6
75/36
48.3 x 2.6
84/36
60.3 x 2.9
88/46
76.1 x 2.9
101/53
88.9 x 3.2
108/58
114.3 x 3.6
114/70
114.3 x 3.6
120/69
139.7 x 3.6
120/75
168.3 x 4.1
145/70
CALPEX PUR-KING (Riscaldamento, 10 bar)
Materiale:
Tubo PEX
mm
32x 4.4
40x 5.5
50x 6.9
63x 8.7
75 x 10.3
90 x 12.3
110 x 15.1
125 x 17.1
ottone
estremità a saldare
mm
33.7 x 2.6
42.4 x 2.6
48.3 x 2.6
60.3 x 2.9
76.1 x 2.9
88.9 x 3.2
114.3 x 3.6
114.3 x 3.6
L/L1
mm
63/29
75/36
84/36
88/46
101/53
108/58
114/70
120/69
Attenzione: Nel sottosuolo consigliamo di utilizzare esclusivamente connettori
a compressione (CPX 1.385 - 1.395)
10.10.19
con riserva di modifiche tecniche.
