TECHNICAL

ACCESSORIES

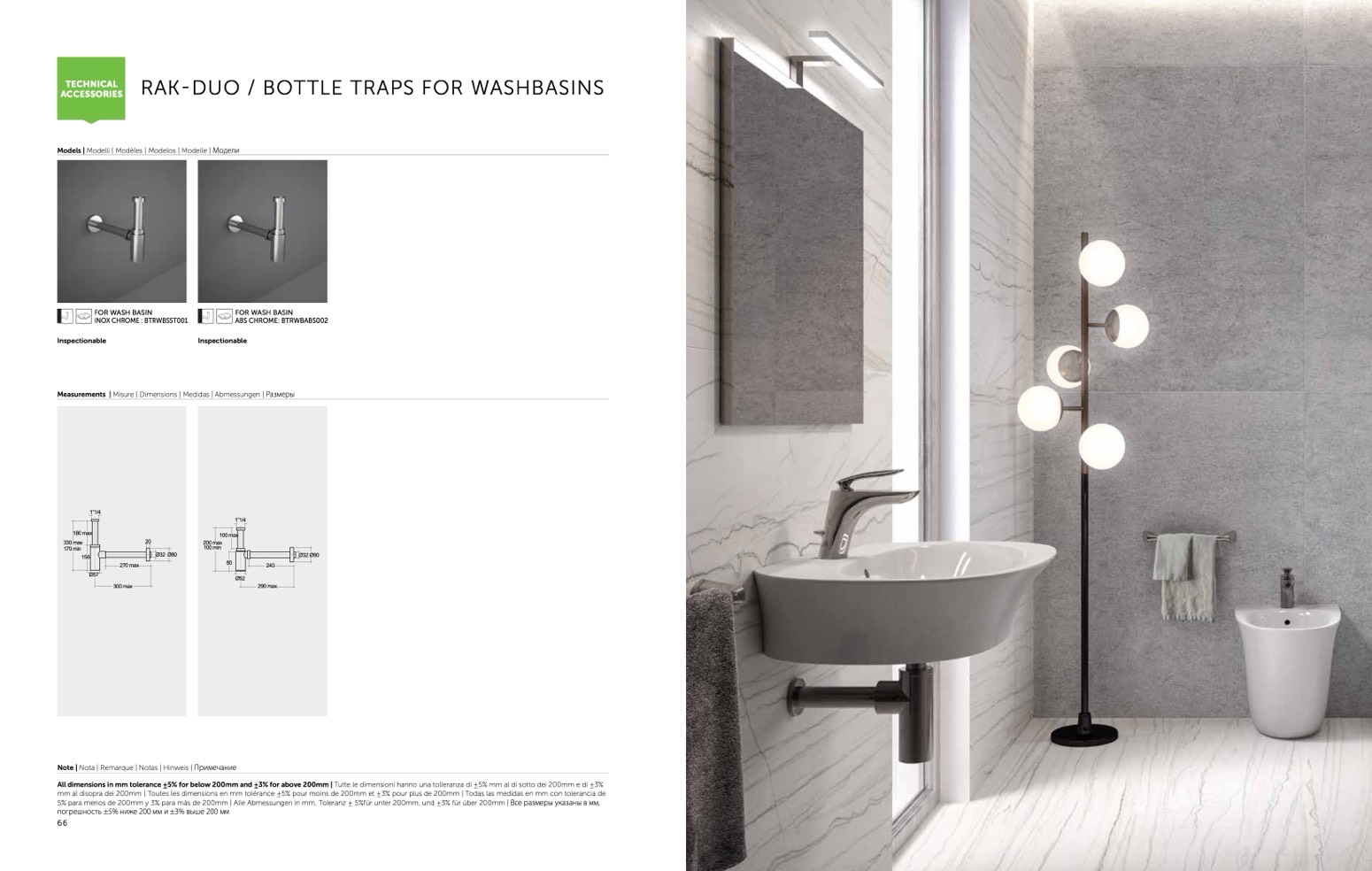

RAK-DUO / BOTTLE TRAPS FOR WASHBASINS

Models | Modelli | Modèles | Modelos | Modelle | Модели

FOR WASH BASIN

INOX CHROME : BTRWBSST001

Inspectionable

FOR WASH BASIN

ABS CHROME: BTRWBABS002

Inspectionable

Measurements | Misure | Dimensions | Medidas | Abmessungen | Размеры

1”1/4

180 max

330 max

170 min

15

20

Ø32 Ø80

270 max

1”1/4

100 max

200 max

100 min

80

Ø32 Ø80

240

6

Ø57

300 max

Ø52

290 max

INSPECTIONABLE

Note | Nota | Remarque | Notas | Hinweis | Примечание

All dimensions in mm tolerance ±5% for below 200mm and ±3% for above 200mm | Tutte le dimensioni hanno una tolleranza di ±5% mm al di sotto dei 200mm e di ±3%

mm al disopra dei 200mm | Toutes les dimensions en mm tolérance ±5% pour moins de 200mm et ±3% pour plus de 200mm | Todas las medidas en mm con tolerancia de

5% para menos de 200mm y 3% para más de 200mm | Alle Abmessungen in mm, Toleranz ± 5%für unter 200mm, und ±3% für über 200mm | Все размеры указаны в мм,

погрешность ±5% ниже 200 мм и ±3% выше 200 мм
