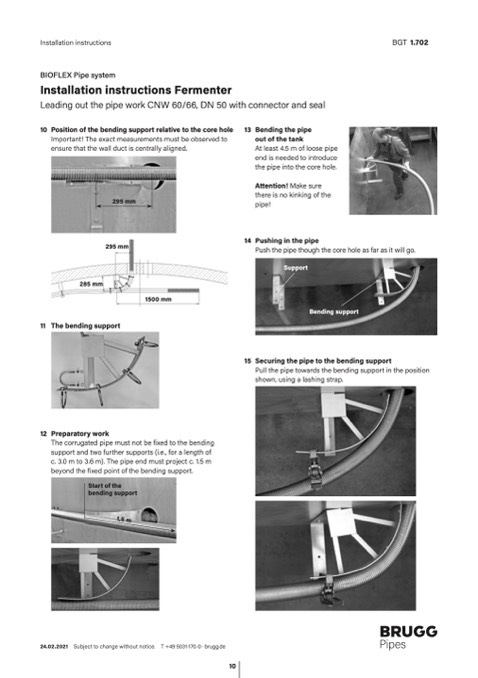

Installation instructions

BGT 1.702

BIOFLEX Pipe system

Installation instructions Fermenter

Leading out the pipe work CNW 60/66, DN 50 with connector and seal

10 Position of the bending support relative to the core hole

Important! The exact measurements must be observed to

ensure that the wall duct is centrally aligned.

13 Bending the pipe

out of the tank

At least 4.5 m of loose pipe

end is needed to introduce

the pipe into the core hole.

Attention! Make sure

there is no kinking of the

pipe!

14 Pushinginthepipe

Push the pipe though the core hole as far as it will go.

Support

15 Securingthepipetothebendingsupport

Pull the pipe towards the bending support in the position

shown, using a lashing strap.

295 mm

295 mm

285 mm

11 The bending support

12 Preparatorywork

1500 mm

Bending support

The corrugated pipe must not be fixed to the bending

support and two further supports (i.e., for a length of

c. 3.0 m to 3.6 m). The pipe end must project c. 1.5 m

beyond the fixed point of the bending support.

Start of the

bending support

1,5 m
