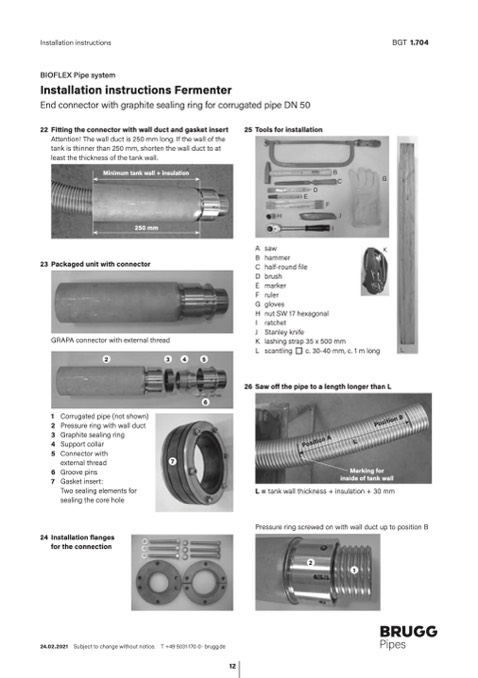

Installation instructions

BGT 1.704

BIOFLEX Pipe system

Installation instructions Fermenter

End connector with graphite sealing ring for corrugated pipe DN 50

22 Fitting the connector with wall duct and gasket insert

Attention! The wall duct is 250 mm long. If the wall of the

tank is thinner than 250 mm, shorten the wall duct to at

least the thickness of the tank wall.

Minimum tank wall + insulation

23 Packaged unit with connector

GRAPA connector with external thread

2

3

4

5

25 Tools for installation

B

A

G

1 Corrugated pipe (not shown)

2 Pressure ring with wall duct

3 Graphite sealing ring

4 Support collar

5 Connector with

external thread

6 Groove pins

7 Gasket insert:

Two sealing elements for

sealing the core hole

24 Installation flanges

for the connection

7

24.02.2021 Subject to change without notice.

T +49 5031 170-0 · brugg.de

6

12

C

D

E

F

H

J

I

A saw

B hammer

C half-roundfile

D brush

E marker

F ruler

G gloves

H nut SW 17 hexagonal

I ratchet

J Stanley knife

K lashing strap 35 x 500 mm

L scantling ■ c. 30-40 mm, c. 1 m long

26 Saw off the pipe to a length longer than L

Marking for

inside of tank wall

L = tank wall thickness + insulation + 30 mm

Pressure ring screwed on with wall duct up to position B

2

1

K

L

250 mm

Position A

Position B

L
