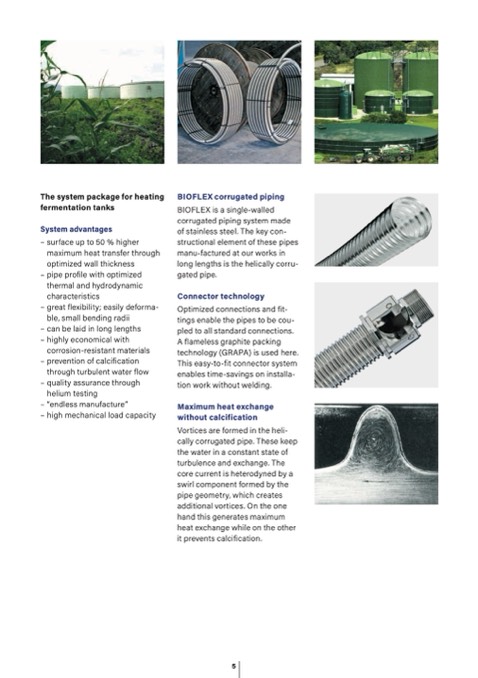

The system package for heating

fermentation tanks

System advantages

– surface up to 50 % higher

maximum heat transfer through

optimized wall thickness

– pipe profile with optimized

thermal and hydrodynamic

characteristics

– great flexibility; easily deforma-

ble, small bending radii

– can be laid in long lengths

– highly economical with

corrosion-resistant materials

– prevention of calcification

through turbulent water flow

– quality assurance through

helium testing

– “endless manufacture”

– high mechanical load capacity

BIOFLEX corrugated piping

BIOFLEX is a single-walled

corrugated piping system made

of stainless steel. The key con-

structional element of these pipes

manu-factured at our works in

long lengths is the helically corru-

gated pipe.

Connector technology

Optimized connections and fit-

tings enable the pipes to be cou-

pled to all standard connections.

A flameless graphite packing

technology (GRAPA) is used here.

This easy-to-fit connector system

enables time-savings on installa-

tion work without welding.

Maximum heat exchange

without calcification

Vortices are formed in the heli-

cally corrugated pipe. These keep

the water in a constant state of

turbulence and exchange. The

core current is heterodyned by a

swirl component formed by the

pipe geometry, which creates

additional vortices. On the one

hand this generates maximum

heat exchange while on the other

it prevents calcification.
