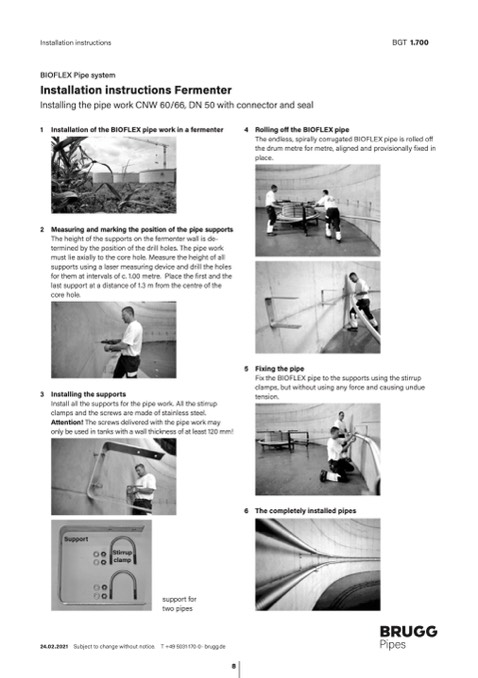

Installation instructions

BGT 1.700

BIOFLEX Pipe system

Installation instructions Fermenter

Installing the pipe work CNW 60/66, DN 50 with connector and seal

1 Installation of the BIOFLEX pipe work in a fermenter

2 Measuring and marking the position of the pipe supports

The height of the supports on the fermenter wall is de-

termined by the position of the drill holes. The pipe work

must lie axially to the core hole. Measure the height of all

supports using a laser measuring device and drill the holes

for them at intervals of c. 1.00 metre. Place the first and the

last support at a distance of 1.3 m from the centre of the

core hole.

3 Installing the supports

Install all the supports for the pipe work. All the stirrup

clamps and the screws are made of stainless steel.

Attention! The screws delivered with the pipe work may

only be used in tanks with a wall thickness of at least 120 mm!

Support

Stirrup

clamp

4 Rolling off the BIOFLEX pipe

The endless, spirally corrugated BIOFLEX pipe is rolled off

the drum metre for metre, aligned and provisionally fixed in

place.

5 Fixing the pipe

Fix the BIOFLEX pipe to the supports using the stirrup

clamps, but without using any force and causing undue

tension.

6 The completely installed pipes

Page 1

support for

two pipes

24.02.2021

Subject to change without notice.
