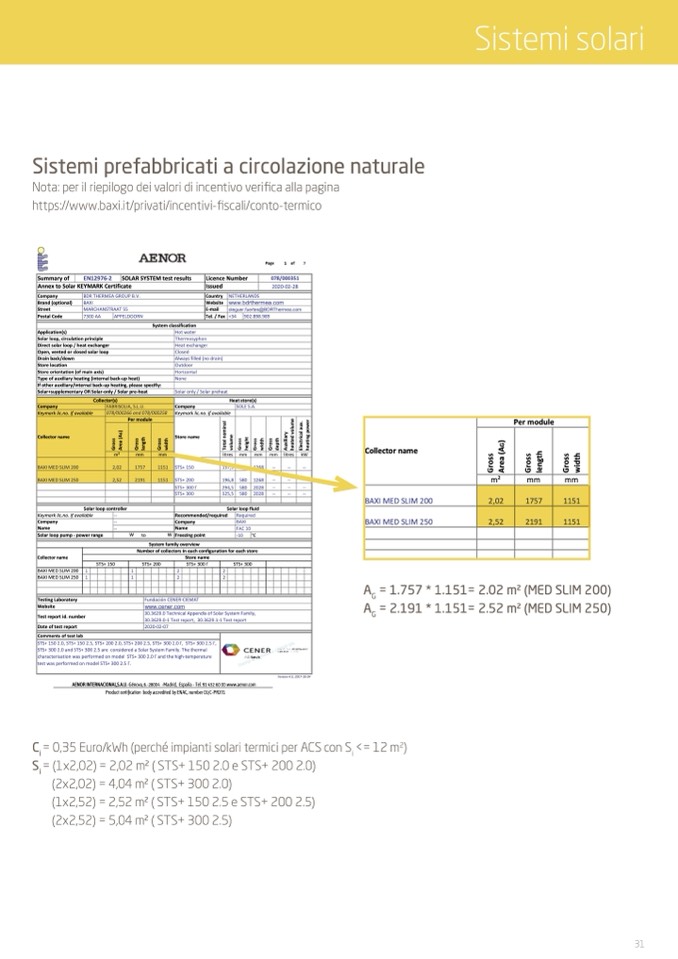

Sistemi solari
Sistemi prefabbricati a circolazione naturale
Nota: per il riepilogo dei valori di incentivo verifica alla pagina
https://www.baxi.it/privati/incentivi-fiscali/conto-termico
Summary of
EN12976-2 SOLAR SYSTEM test results
Annex to Solar KEYMARK Certificate
Licence
Issued
Country
Website
Tel. / Fax
Company
Brand (optional)
Street
Postal Code
BDR THERMEA GROUP B.V.
BAXI
MARCHANSTRAAT 55
7300 AA
APPELDOORN
Summary of
EN12976-2 SOLAR SYSTEM test results
Licence Number
Application(s)
Solar loop, circulation principle
Direct solar loop / heat exchanger
Open, vented or closed solar loop
Drain back/down
Store location
Store orientation (of main axis)
Type of auxiliary heating (internal back-up heat)
If other auxiliary/internal back-up heating, please specifiy:
Solar+supplementary OR Solar-only / Solar pre-heat
Hot water
Thermosyphon
Heat exchanger
Closed
Always filled (no drain)
Outdoor
Horizontal
None
Solar only / Solar prehea
Company
Keymark lic.no. if availab
Store name
lit
STS+ 150
15
STS+ 200
19
STS+ 300 Γ
29
STS+ 300
32
Page
1of
7
078/000351
System classification
Annex to Solar KEYMARK Certificate
Issued
2020-02-28
Company
BDR THERMEA GROUP B.V.
Country
NETHERLANDS
Brand (optional)
BAXI
Website
www.bdrthermea.com
Street
MARCHANSTRAAT 55
oleguer.fuertes@BDRThermea.com
Postal Code
7300 AA
APPELDOORN
Tel. / Fax
+34
902.898.989
System classification
Application(s)
Hot water
Solar loop, circulation principle
Thermosyphon
Direct solar loop / heat exchanger
Heat exchanger
Open, vented or closed solar loop
Closed
Drain back/down
Always filled (no drain)
Store location
Outdoor
Store orientation (of main axis)
Horizontal
Type of auxiliary heating (internal back-up heat)
None
If other auxiliary/internal back-up heating, please specifiy:
Solar+supplementary OR Solar-only / Solar pre-heat
Solar only / Solar preheat
Collector(s)
Heat store(s)
Company
FABRISOLIA, S.L.U.
Company
SOLE S.A.
Keymark lic.no. if available
078/000266 and 078/000258
Keymark lic.no. if available
Collector name
Per module
Store name
m2
mm
mm
litres
mm
mm
mm
litres
kW
BAXI MED SLIM 200
2,02
1757
1151
STS+ 150
157,9
500
1268
--
--
--
BAXI MED SLIM 250
2,52
2191
1151
STS+ 200
196,8
580
1268
--
--
--
STS+ 300 Γ
294,5
580
2028
--
--
--
STS+ 300
325,5
580
2028
--
--
--
Solar loop controller
Solar loop fluid
Keymark lic.no. if available
--
Recommended/required
Required
Company
Name
--
Company
BAXI
--
Name
FAC 10
Solar loop pump - power range
W
to
W
Freezing point
-10
°C
System family overview
Collector name
Number of collectors in each configuration for each store
Store name
STS+ 150
STS+ 200
STS+ 300 Γ
STS+ 300
BAXI MED SLIM 200
1
1
2
2
BAXI MED SLIM 250
1
1
2
2
Testing Laboratory
Fundación CENER-CIEMAT
Website
www.cener.com
Test report id. number
30.3629.0 Technical Appendix of Solar System Family,
30.3629.0-1 Test report, 30.3629.1-1 Test report
Date of test report
2020-02-07
Comments of test lab
STS+ 150 2.0, STS+ 150 2.5, STS+ 200 2.0, STS+ 200 2.5, STS+ 300 2.0 Γ, STS+ 300 2.5 Γ,
STS+ 300 2.0 and STS+ 300 2.5 are considered a Solar System Family. The thermal
characterisation was performed on model STS+ 300 2.0 Γ and the high-temperature
test was performed on model STS+ 300 2.5 Γ.
