certificazioni | certifications

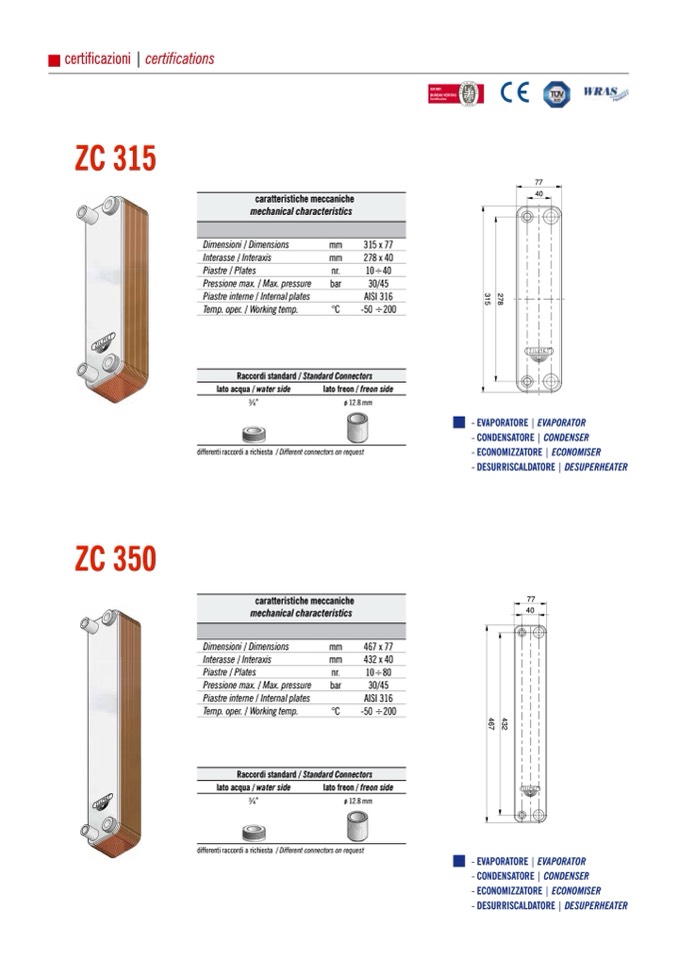

ZC 315
ZC 350
caratteristiche meccaniche
mechanical characteristics
77
40
Dimensioni / Dimensions
Interasse / Interaxis
Piastre / Plates
Pressione max. / Max. pressure
Piastre interne / Internal plates
Temp. oper. / Working temp.
278
315
mm
315 x 77
mm
278 x 40
nr.
10÷40
bar
30/45
AISI 316
°C
-50 ÷200
Raccordi standard / Standard Connectors
lato acqua / water side
lato freon / freon side
3⁄4”
ø 12.8 mm
differenti raccordi a richiesta / Different connectors on request
differenti raccordi a richiesta / Different connectors on request
- EVAPORATORE | EVAPORATOR
- CONDENSATORE | CONDENSER
- ECONOMIZZATORE | ECONOmiSER
- DESURRISCALDATORE | DESuPERhEATER
77
40
caratteristiche meccaniche
mechanical characteristics
Dimensioni / Dimensions
mm
Interasse / Interaxis
mm
Piastre / Plates
nr.
Pressione max. / Max. pressure
bar
Piastre interne / Internal plates
Temp. oper. / Working temp.
°C
Raccordi standard / Standard Connectors
lato acqua / water side
lato freon / freon side
3⁄4”
ø 12.8 mm
differenti raccordi a richiesta / Different connectors on request
differenti raccordi a richiesta / Different connectors on request
7
7
4
0
7
7
4
0
2
7
8
4
3
2
4
6
7
3
1
5
432
467
467 x 77
432 x 40
10÷80
30/45
AISI 316
-50 ÷200
- EVAPORATORE | EVAPORATOR
- CONDENSATORE | CONDENSER
- ECONOMIZZATORE | ECONOmiSER
- DESURRISCALDATORE | DESuPERhEATER
