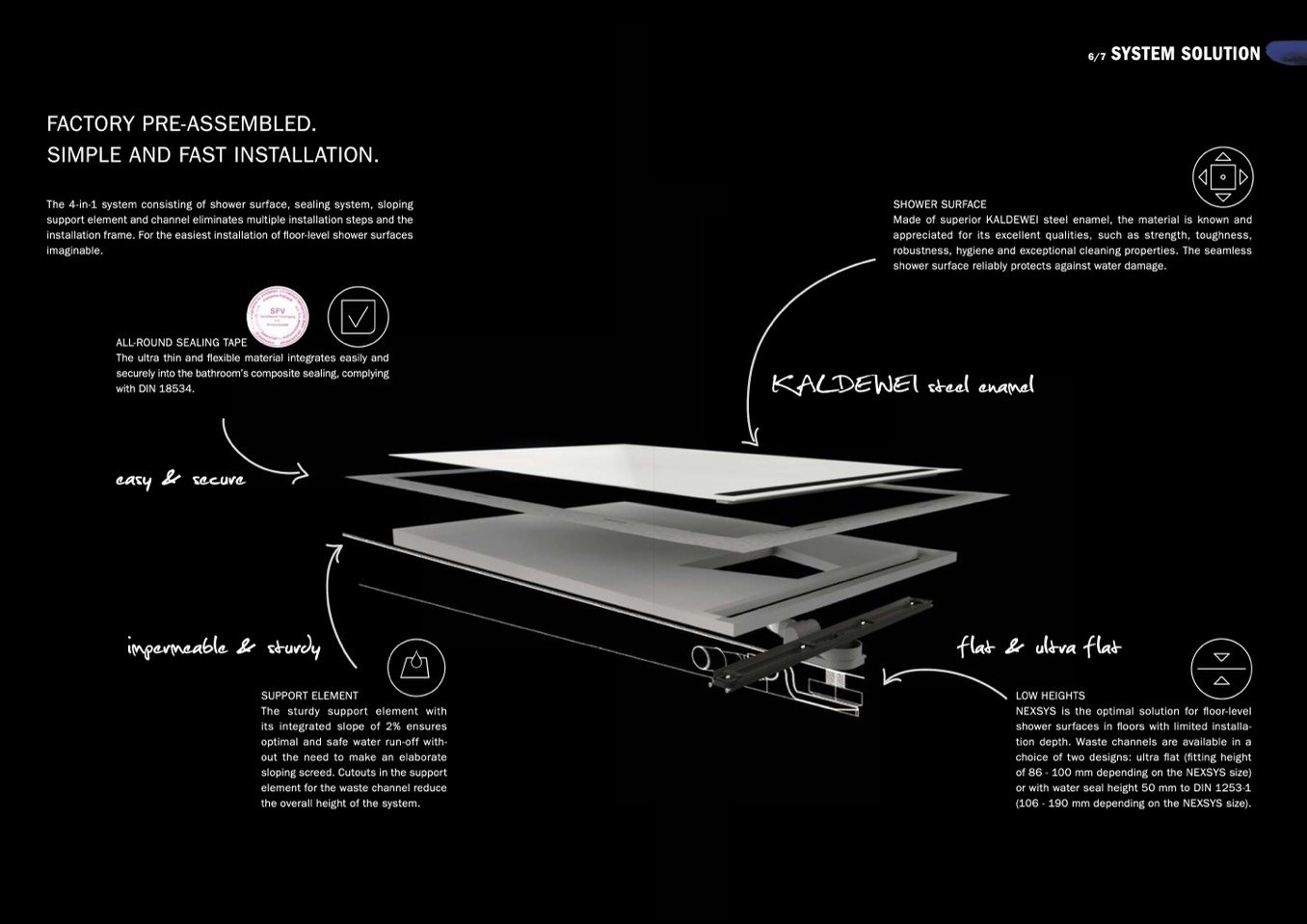

FACTORY PRE-ASSEMBLED.

SIMPLE AND FAST INSTALLATION.

The 4-in-1 system consisting of shower surface, sealing system, sloping

support element and channel eliminates multiple installation steps and the

installation frame. For the easiest installation of floor-level shower surfaces

imaginable.

ALL-ROUND SEALING TAPE

The ultra thin and flexible material integrates easily and

securely into the bathroom’s composite sealing, complying

with DIN 18534.

easy & secure

impermeable & sturdy

SUPPORT ELEMENT

The sturdy support element with

its integrated slope of 2% ensures

optimal and safe water run-off with-

out the need to make an elaborate

sloping screed. Cutouts in the support

element for the waste channel reduce

the overall height of the system.

SHOWER SURFACE

Made of superior KALDEWEI steel enamel, the material is known and

appreciated for its excellent qualities, such as strength, toughness,

robustness, hygiene and exceptional cleaning properties. The seamless

shower surface reliably protects against water damage.

KALDEWEI steel enamel

f lat & ultra f lat

LOW HEIGHTS

NEXSYS is the optimal solution for floor-level

shower surfaces in floors with limited installa-

tion depth. Waste channels are available in a

choice of two designs: ultra flat (fitting height

of 86 - 100 mm depending on the NEXSYS size)

or with water seal height 50 mm to DIN 1253-1

(106 - 190 mm depending on the NEXSYS size).
