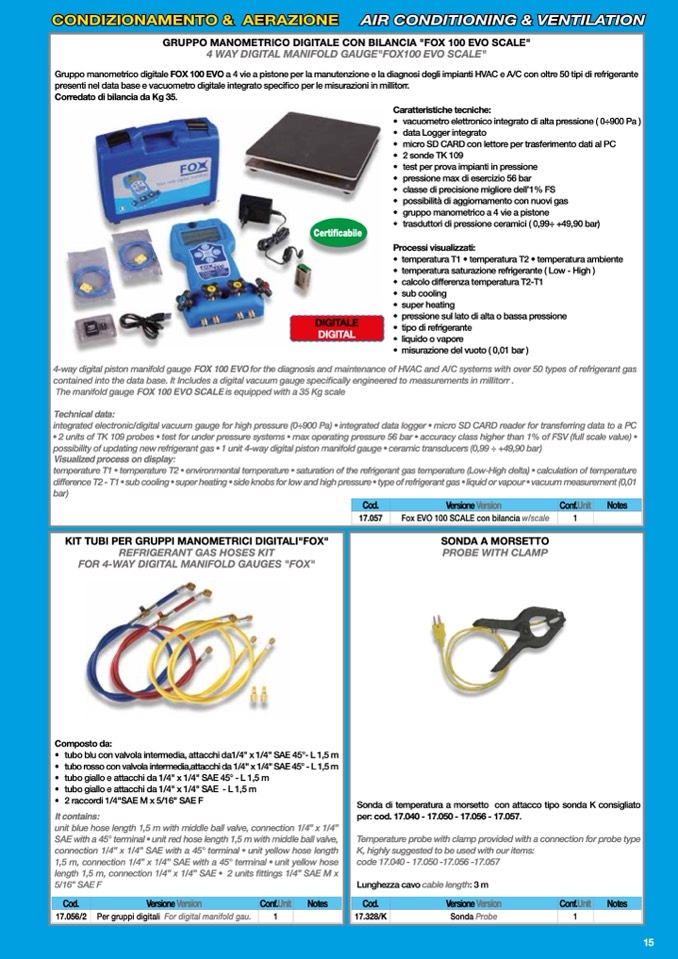

GRUPPO MANOMETRICO DIGITALE CON BILANCIA "FOX 100 EVO SCALE"

4 WAY DIGITAL MANIFOLD GAUGE"FOX100 EVO SCALE"

Gruppo manometrico digitale FOX 100 EVO a 4 vie a pistone per la manutenzione e la diagnosi degli impianti HVAC e A/C con oltre 50 tipi di refrigerante

presenti nel data base e vacuometro digitale integrato specifico per le misurazioni in millitorr.

Corredato di bilancia da Kg 35.

Versione

Version

Conf.

Unit

Certificabile

DIGITALE

DIGITAL

Caratteristiche tecniche:

• vacuometroelettronicointegratodialtapressione(0÷900Pa)

• dataLoggerintegrato

• microSDCARDconlettorepertrasferimentodatialPC

• 2sondeTK109

• testperprovaimpiantiinpressione

• pressionemaxdiesercizio56bar

• classediprecisionemiglioredell’1%FS

• possibilitàdiaggiornamentoconnuovigas

• gruppomanometricoa4vieapistone

• trasduttoridipressioneceramici(0,99÷+49,90bar)

Processi visualizzati:

• temperaturaT1•temperaturaT2•temperaturaambiente

• temperaturasaturazionerefrigerante(Low-High)

• calcolodifferenzatemperaturaT2-T1

• subcooling

• superheating

• pressionesullatodialtaobassapressione

• tipodirefrigerante

• liquidoovapore

• misurazionedelvuoto(0,01bar)

4-way digital piston manifold gauge

FOX 100 EVO for the diagnosis and maintenance of HVAC and A/C systems with over 50 types of refrigerant gas

contained into the data base. It Includes a digital vacuum gauge specifically engineered to measurements in millitorr .

The manifold gauge

FOX 100 EVO SCALE is equipped with a 35 Kg scale

Technical data:

integrated electronic/digital vacuum gauge for high pressure (0÷900 Pa) • integrated data logger • micro SD CARD reader for transferring data to a PC

• 2 units of TK 109 probes • test for under pressure systems • max operating pressure 56 bar • accuracy class higher than 1% of FSV (full scale value) •

possibility of updating new refrigerant gas • 1 unit 4-way digital piston manifold gauge • ceramic transducers (0,99 ÷ +49,90 bar)

Visualized process on display:

temperature T1 • temperature T2 • environmental temperature • saturation of the refrigerant gas temperature (Low-High delta) • calculation of temperature

difference T2 - T1 • sub cooling • super heating • side knobs for low and high pressure • type of refrigerant gas • liquid or vapour • vacuum measurement (0,01

bar)

Lunghezza cavo cable length: 3 m

Versione

Version

Versione

Version

Conf.

Unit

Cod.

Conf.

Unit

Notes

KIT TUBI PER GRUPPI MANOMETRICI DIGITALI"FOX"

REFRIGERANT GAS HOSES KIT

FOR 4-WAY DIGITAL MANIFOLD GAUGES "FOX"

Composto da:

• tubobluconvalvolaintermedia,attacchida1/4"x1/4"SAE45°-L1,5m

• tuborossoconvalvolaintermedia,attacchida1/4"x1/4"SAE45°-L1,5m

• tubogialloeattacchida1/4"x1/4"SAE45°-L1,5m

• tubogialloeattacchida1/4"x1/4"SAE -L1,5m

• 2raccordi1/4"SAEMx5/16"SAEF

It contains:

unit blue hose length 1,5 m with middle ball valve, connection 1/4” x 1/4”

SAE with a 45° terminal • unit red hose length 1,5 m with middle ball valve,

connection 1/4” x 1/4” SAE with a 45° terminal • unit yellow hose length

1,5 m, connection 1/4” x 1/4” SAE with a 45° terminal • unit yellow hose

length 1,5 m, connection 1/4” x 1/4” SAE • 2 units fittings 1/4” SAE M x

5/16” SAE F

17.057

Fox EVO 100 SCALE con bilancia w/scale

1

SONDA A MORSETTO

PROBE WITH CLAMP

Sonda di temperatura a morsetto con attacco tipo sonda K consigliato

per: cod. 17.040 - 17.050 - 17.056 - 17.057.

Temperature probe with clamp provided with a connection for probe type

K, highly suggested to be used with our items:

code 17.040 - 17.050 -17.056 -17.057

Cod.

Notes

Cod.

Notes

17.056/2

Per gruppi digitali For digital manifold gau.

1

17.328/K

Sonda Probe

1
