BOSSINI
BRACCI E SOFFIONI – SHOWER HEADS AND ARMS

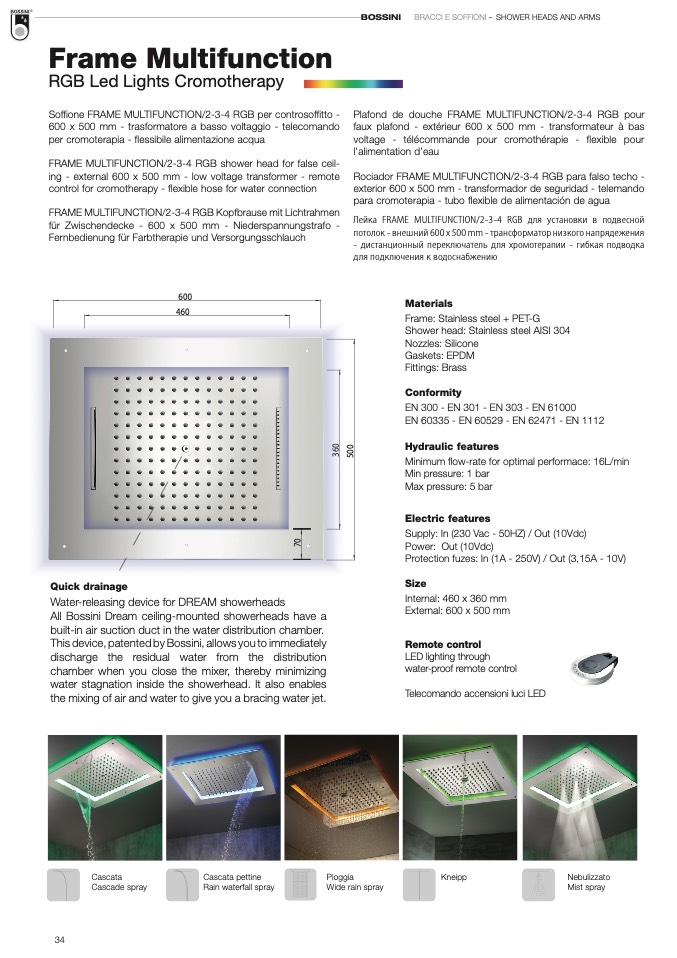

Frame Multifunction
RGB Led Lights Cromotherapy
Soffione FRAME MULTIFUNCTION/2-3-4 RGB per controsoffitto -
600 x 500 mm - trasformatore a basso voltaggio - telecomando
per cromoterapia - flessibile alimentazione acqua
FRAME MULTIFUNCTION/2-3-4 RGB shower head for false ceil-
ing - external 600 x 500 mm - low voltage transformer - remote
control for cromotherapy - flexible hose for water connection
FRAME MULTIFUNCTION/2-3-4 RGB Kopfbrause mit Lichtrahmen
für Zwischendecke - 600 x 500 mm - Niederspannungstrafo -
Fernbedienung für Farbtherapie und Versorgungsschlauch
Plafond de douche FRAME MULTIFUNCTION/2-3-4 RGB pour
faux plafond - extérieur 600 x 500 mm - transformateur à bas
voltage - télécommande pour cromothérapie - flexible pour
l’alimentation d’eau
Rociador FRAME MULTIFUNCTION/2-3-4 RGB para falso techo -
exterior 600 x 500 mm - transformador de seguridad - telemando
para cromoterapia - tubo flexible de alimentación de agua
Лейка FRAME MULTIFUNCTION/2-3-4 RGB для установки в подвесной
потолок - внешний 600 x 500 mm - трансформатор низкого напрядежения
- дистанционный переключатель для хромотерапии - гибкая подводка
для подключения к водоснабжению
Materials
Frame: Stainless steel + PET-G
Shower head: Stainless steel AISI 304
Nozzles: Silicone
Gaskets: EPDM
Fittings: Brass
Conformity
EN 300 - EN 301 - EN 303 - EN 61000
EN 60335 - EN 60529 - EN 62471 - EN 1112
Hydraulic features
Minimum flow-rate for optimal performace: 16L/min
600
600
600
460
460
460
70
70
70
Min pressure: 1 bar
Max pressure: 5 bar
Electric features
Supply: In (230 Vac - 50HZ) / Out (10Vdc)
Power: Out (10Vdc)
Protection fuzes: In (1A - 250V) / Out (3,15A - 10V)
Quick drainage
Size
Internal: 460 x 360 mm
External: 600 x 500 mm
Remote control
LED lighting through
water-proof remote control
Telecomando accensioni luci LED
Water-releasing device for DREAM showerheads
All Bossini Dream ceiling-mounted showerheads have a
built-in air suction duct in the water distribution chamber.
This device, patented by Bossini, allows you to immediately
discharge the residual water from the distribution
chamber when you close the mixer, thereby minimizing
water stagnation inside the showerhead. It also enables
the mixing of air and water to give you a bracing water jet.
34
Cascata
Cascata pettine
Pioggia
Cascade spray
Rain waterfall spray
Wide rain spray
Kneipp
Nebulizzato
Mist spray
7
0
7
0
7
0
3
6
3
0
6
0
5
0
5
0
0
0
3
6
0
5
0
0
1
9
1
9
2
2
1
9
2
