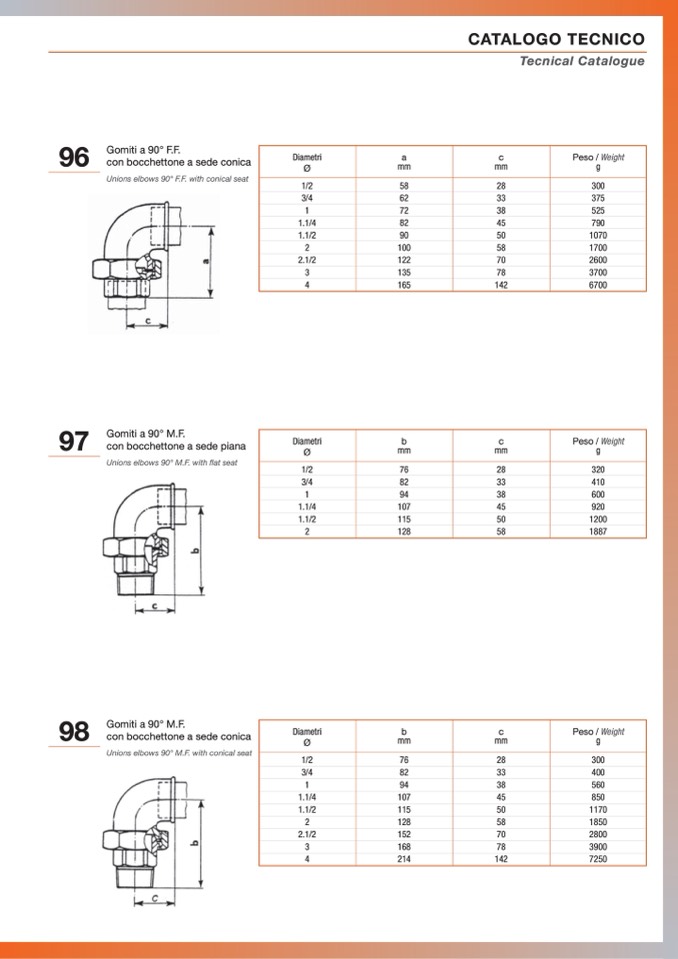

CATALOGO TECNICO
Tecnical Catalogue
Diametri
Ø
a
mm
c
mm
Peso / Weight
g
1/2
58
28
300
3/4
62
33
375
1
72
38
525
1.1/4
82
45
790
1.1/2
90
50
1070
2
100
58
1700
2.1/2
122
70
2600
3
135
78
3700
4
165
142
6700
96
Gomiti a 90° F.F.
con bocchettone a sede conica
Unions elbows 90° F.F. with conical seat
Diametri
Ø
b
mm
c
mm
Peso / Weight
g
1/2
76
28
320
3/4
82
33
410
1
94
38
600
1.1/4
107
45
920
1.1/2
115
50
1200
2
128
58
1887
97
Gomiti a 90° M.F.
con bocchettone a sede piana
Unions elbows 90° M.F. with flat seat
Diametri
Ø
b
mm
c
mm
Peso / Weight
g
1/2
76
28
300
3/4
82
33
400
1
94
38
560
1.1/4
107
45
850
1.1/2
115
50
1170
2
128
58
1850
2.1/2
152
70
2800
3
168
78
3900
4
214
142
7250
98
Gomiti a 90° M.F.
con bocchettone a sede conica
Unions elbows 90° M.F. with conical seat
