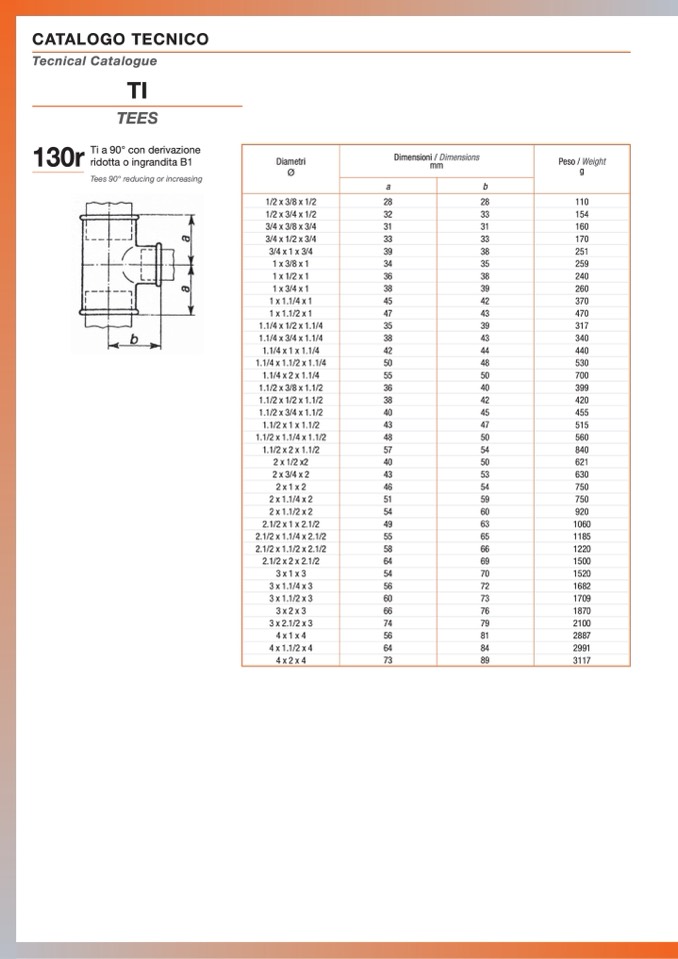

CATALOGO TECNICO

Tecnical Catalogue

TI

TEES

130r

Ti a 90° con derivazione

ridotta o ingrandita B1

Tees 90° reducing or increasing

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

1/2 x 3/8 x 1/2

28

28

110

1/2 x 3/4 x 1/2

32

33

154

3/4 x 3/8 x 3/4

31

31

160

3/4 x 1/2 x 3/4

33

33

170

3/4 x 1 x 3/4

39

38

251

1 x 3/8 x 1

34

35

259

1 x 1/2 x 1

36

38

240

1 x 3/4 x 1

38

39

260

1 x 1.1/4 x 1

45

42

370

1 x 1.1/2 x 1

47

43

470

1.1/4 x 1/2 x 1.1/4

35

39

317

1.1/4 x 3/4 x 1.1/4

38

43

340

1.1/4 x 1 x 1.1/4

42

44

440

1.1/4 x 1.1/2 x 1.1/4

50

48

530

1.1/4 x 2 x 1.1/4

55

50

700

1.1/2 x 3/8 x 1.1/2

36

40

399

1.1/2 x 1/2 x 1.1/2

38

42

420

1.1/2 x 3/4 x 1.1/2

40

45

455

1.1/2 x 1 x 1.1/2

43

47

515

1.1/2 x 1.1/4 x 1.1/2

48

50

560

1.1/2 x 2 x 1.1/2

57

54

840

2 x 1/2 x2

40

50

621

2 x 3/4 x 2

43

53

630

2 x1 x2

46

54

750

2 x 1.1/4 x 2

51

59

750

2 x 1.1/2 x 2

54

60

920

2.1/2 x 1 x 2.1/2

49

63

1060

2.1/2 x 1.1/4 x 2.1/2

55

65

1185

2.1/2 x 1.1/2 x 2.1/2

58

66

1220

2.1/2 x 2 x 2.1/2

64

69

1500

3 x1 x3

54

70

1520

3 x 1.1/4 x 3

56

72

1682

3 x 1.1/2 x 3

60

73

1709

3 x2 x3

66

76

1870

3 x 2.1/2 x 3

74

79

2100

4 x1 x4

56

81

2887

4 x 1.1/2 x 4

64

84

2991

4 x2 x4

73

89

3117
