Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

c

1/2 x 1/2 x 3/8

30

30

27

112

3/4 x 1/2 x 1/2

33

35

30

160

3/4 x 3/4 x 1/2

36

36

32

193

1 x 1/2 x 1/2

35

36

30

205

1 x 1/2 x 3/4

35

36

33

205

1 x 3/4 x 1/2

38

39

33

230

1 x 3/4 x 3/4

38

39

35

250

1 x 1 x 1/2

40

40

39

270

1 x 1 x 3/4

40

40

39

275

1.1/4 x 1/2 x 1

37

41

37

300

1.1/4 x 3/4 x 3/4

39

44

36

300

1.1/4 x 3/4 x 1

39

44

38

350

1.1/4 x 1 x 1

43

45

40

395

1.1/4 x 1.1/4 x 1/2

48

48

40

401

1.1/4 x 1.1/4 x 3/4

48

48

44

410

1.1/4 x 1.1/4 x 1

48

48

45

460

1.1/2 x 1/2 x 1/2

38

-

28

403

1.1/2 x 1/2 x 1.1/4

38

43

37

411

1.1/2 x 3/4 x 1.1/4

40

47

39

435

1.1/2 x 1 x 1

45

49

41

455

1.1/2 x 1 x 1.1/4

45

49

43

500

1.1/2 x 1.1/4 x 1.1/4

49

50

48

550

1.1/2 x 1.1/2 x 1/2

53

53

45

550

1.1/2 x 1.1/2 x 3/4

53

53

47

560

1.1/2 x 1.1/2 x 1

53

53

49

600

1.1/2 x 1.1/2 x 1.1/4

53

53

51

660

2 x 3/4 x 1.1/2

43

53

45

600

2 x 1.1/4 x 1.1/4

50

-

48

750

2 x 1.1/2 x 1.1/2

55

58

54

850

2 x2 x1

61

61

55

899

2 x 2 x 1.1/4

61

61

57

947

2 x 2 x 1.1/2

61

61

58

960

130r

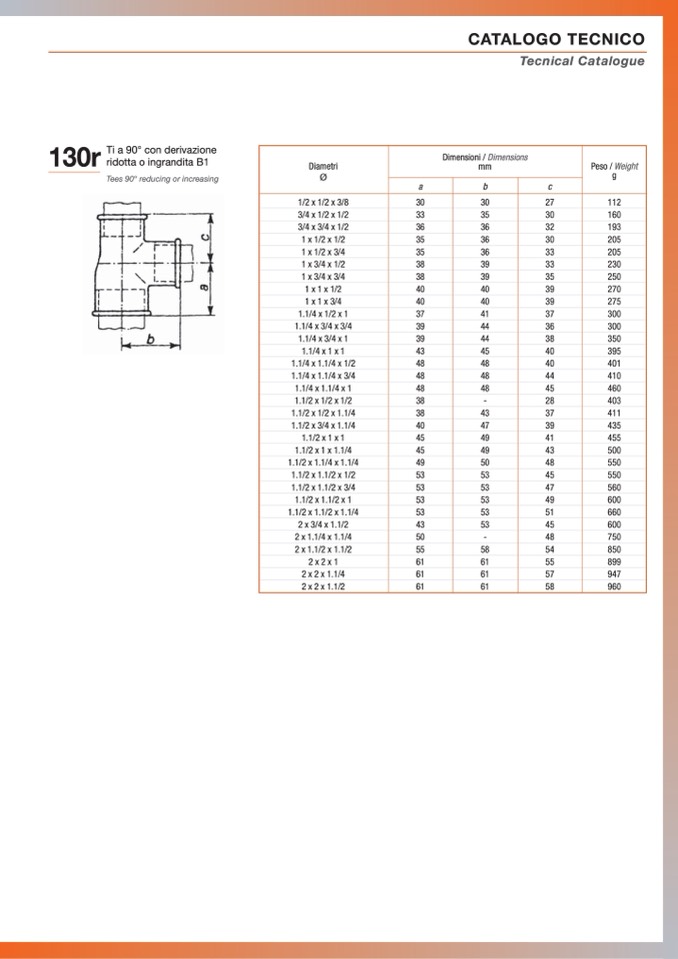

Ti a 90° con derivazione

ridotta o ingrandita B1

Tees 90° reducing or increasing
