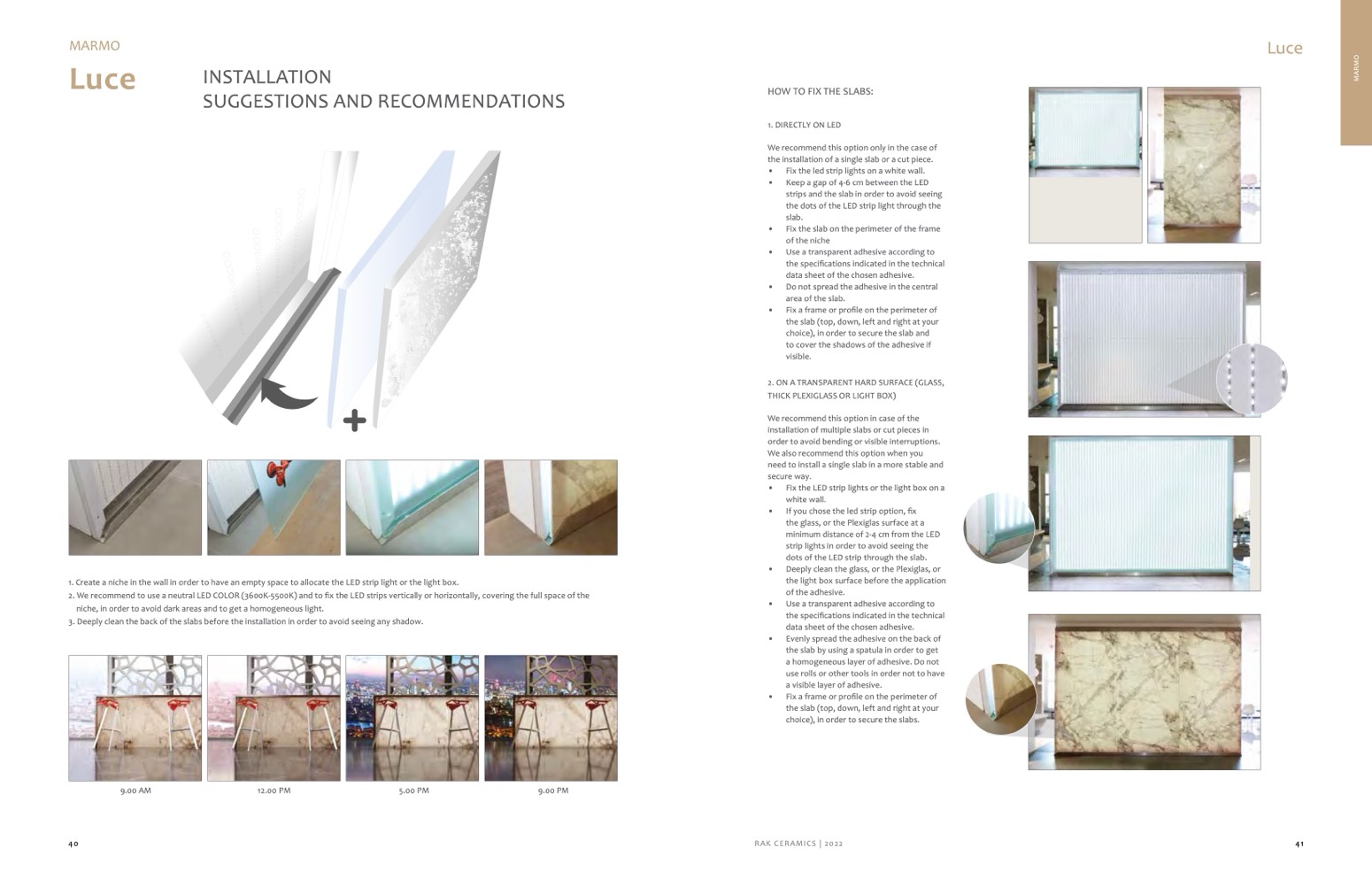

INSTALLATION

SUGGESTIONS AND RECOMMENDATIONS

HOW TO FIX THE SLABS:

1. DIRECTLY ON LED

We recommend this option only in the case of

the installation of a single slab or a cut piece.

• Fix the led strip lights on a white wall.

• Keep a gap of 4-6 cm between the LED

strips and the slab in order to avoid seeing

the dots of the LED strip light through the

slab.

• Fix the slab on the perimeter of the frame

of the niche

• Use a transparent adhesive according to

the specifications indicated in the technical

data sheet of the chosen adhesive.

• Do not spread the adhesive in the central

area of the slab.

• Fix a frame or profile on the perimeter of

the slab (top, down, left and right at your

choice), in order to secure the slab and

to cover the shadows of the adhesive if

visible.

2. ON A TRANSPARENT HARD SURFACE (GLASS,

THICK PLEXIGLASS OR LIGHT BOX)

We recommend this option in case of the

installation of multiple slabs or cut pieces in

order to avoid bending or visible interruptions.

We also recommend this option when you

need to install a single slab in a more stable and

secure way.

• Fix the LED strip lights or the light box on a

white wall.

• If you chose the led strip option, fix

the glass, or the Plexiglas surface at a

minimum distance of 2-4 cm from the LED

strip lights in order to avoid seeing the

dots of the LED strip through the slab.

• Deeply clean the glass, or the Plexiglas, or

the light box surface before the application

of the adhesive.

• Use a transparent adhesive according to

the specifications indicated in the technical

data sheet of the chosen adhesive.

• Evenly spread the adhesive on the back of

the slab by using a spatula in order to get

a homogeneous layer of adhesive. Do not

use rolls or other tools in order not to have

a visible layer of adhesive.

• Fix a frame or profile on the perimeter of

the slab (top, down, left and right at your

choice), in order to secure the slabs.

1. Create a niche in the wall in order to have an empty space to allocate the LED strip light or the light box.

2. We recommend to use a neutral LED COLOR (3600K-5500K) and to fix the LED strips vertically or horizontally, covering the full space of the

niche, in order to avoid dark areas and to get a homogeneous light.

3. Deeply clean the back of the slabs before the installation in order to avoid seeing any shadow.
