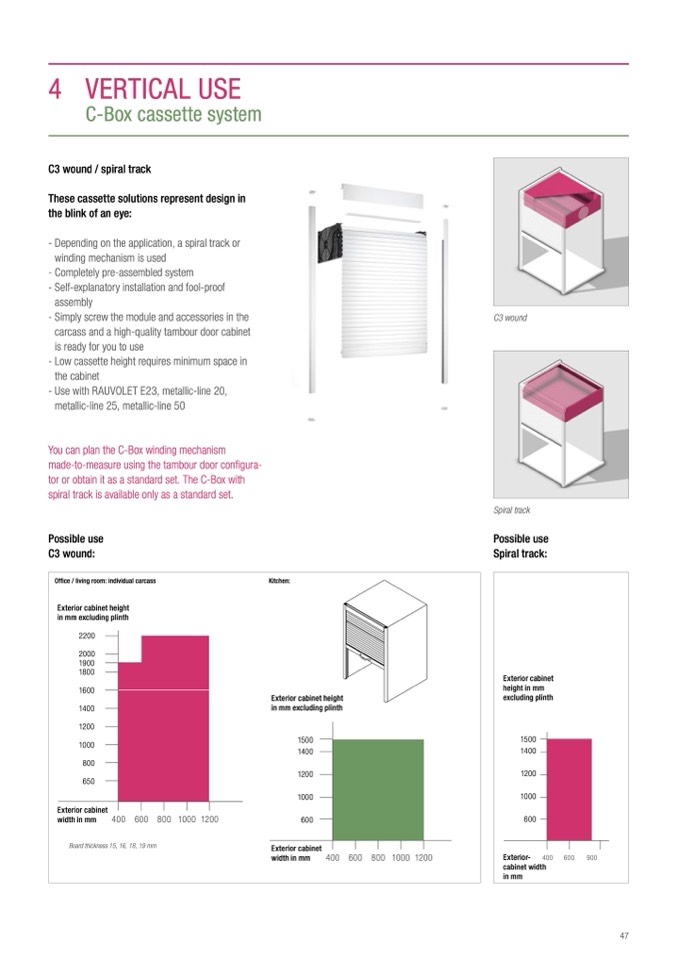

4 VERTICAL USE
C-Box cassette system
C3 wound / spiral track
These cassette solutions represent design in
the blink of an eye:
- Depending on the application, a spiral track or
winding mechanism is used
- Completely pre-assembled system
- Self-explanatory installation and fool-proof
assembly
- Simply screw the module and accessories in the
carcass and a high-quality tambour door cabinet
is ready for you to use
- Low cassette height requires minimum space in
the cabinet
- Use with RAUVOLET E23, metallic-line 20,
metallic-line 25, metallic-line 50
You can plan the C-Box winding mechanism
made-to-measure using the tambour door configura-
tor or obtain it as a standard set. The C-Box with
spiral track is available only as a standard set.
C3 wound
Possible use
C3 wound:
Office / living room: individual carcass
Exterior cabinet height
in mm excluding plinth
2200
2000
1900
1800
1600
1400
1200
1000
800
650
Exterior cabinet
width in mm
Kitchen:
Exterior cabinet height
in mm excluding plinth
Spiral track
Possible use
Spiral track:
Exterior cabinet
height in mm
excluding plinth
1500
1400
1200
1000
600
Exterior- 400 600 900
cabinet width
in mm
400 600 800
1500
1400
1200
1000
1000 1200
600
Exterior cabinet
width in mm
Board thickness 15, 16, 18, 19 mm
400
600
800
1000
1200
