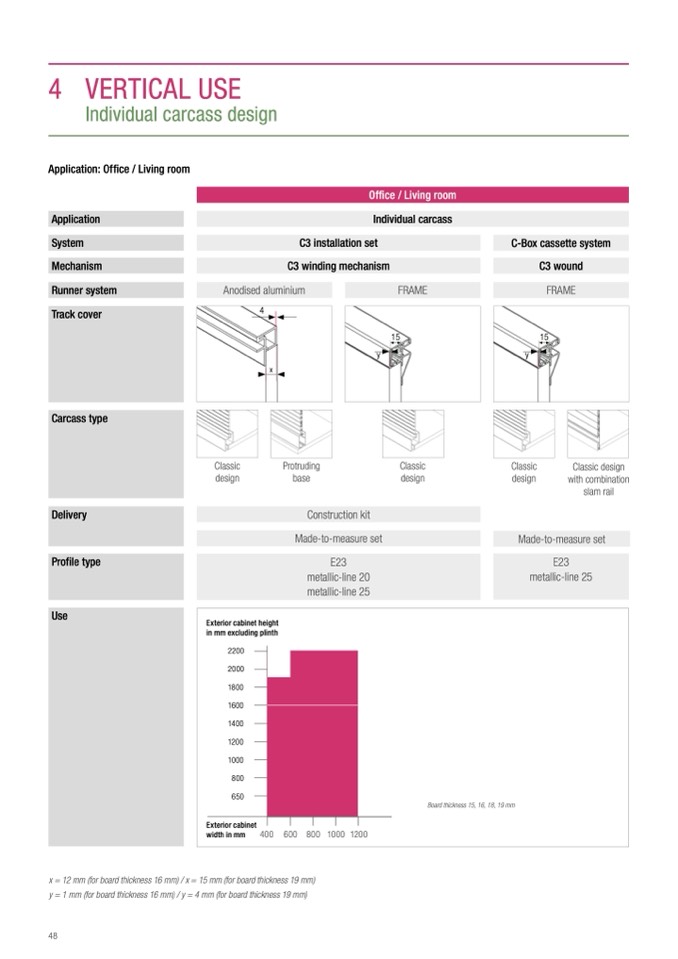

4 VERTICAL USE

Individual carcass design

Application: Office / Living room

Application

System

Mechanism

Runner system

Office / Living room

Individual carcass

C3 installation set

C3 winding mechanism

Anodised aluminium

FRAME

C-Box cassette system

C3 wound

FRAME

Delivery

Classic

design

Protruding

base

Construction kit

Made-to-measure set

Classic

design

Classic

design

Classic design

with combination

slam rail

15

y

Made-to-measure set

Use

Exterior cabinet height

in mm excluding plinth

2200

2000

1800

1600

1400

1200

1000

800

650

Exterior cabinet

width in mm

Board thickness 15, 16, 18, 19 mm

400 600

800 1000 1200

x = 12 mm (for board thickness 16 mm) / x = 15 mm (for board thickness 19 mm)

y = 1 mm (for board thickness 16 mm) / y = 4 mm (for board thickness 19 mm)

48

4

►

x

◄

Track cover

15

y

Carcass type

Profile type

E23

metallic-line 20

metallic-line 25

E23

metallic-line 25
