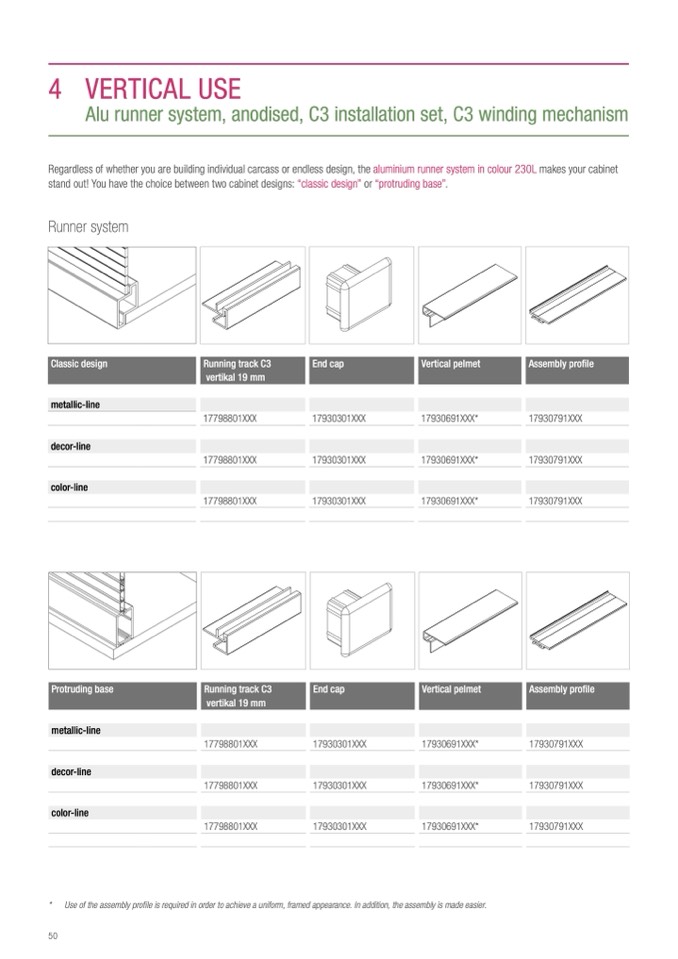

4 VERTICAL USE

Alu runner system, anodised, C3 installation set, C3 winding mechanism

Regardless of whether you are building individual carcass or endless design, the aluminium runner system in colour 230L makes your cabinet

stand out! You have the choice between two cabinet designs: “classic design” or “protruding base”.

Runner system

Classic design

metallic-line

decor-line

color-line

ww

Protruding base

metallic-line

decor-line

color-line

Running track C3

vertikal 19 mm

17798801XXX

17798801XXX

17798801XXX

End cap

17930301XXX

17930301XXX

17930301XXX

Vertical pelmet

17930691XXX*

17930691XXX*

17930691XXX*

Assembly profile

17930791XXX

17930791XXX

17930791XXX

Running track C3

vertikal 19 mm

17798801XXX

17798801XXX

17798801XXX

End cap

17930301XXX

17930301XXX

17930301XXX

Vertical pelmet

17930691XXX*

17930691XXX*

17930691XXX*

Assembly profile

17930791XXX

17930791XXX

17930791XXX

* Use of the assembly profile is required in order to achieve a uniform, framed appearance. In addition, the assembly is made easier.
