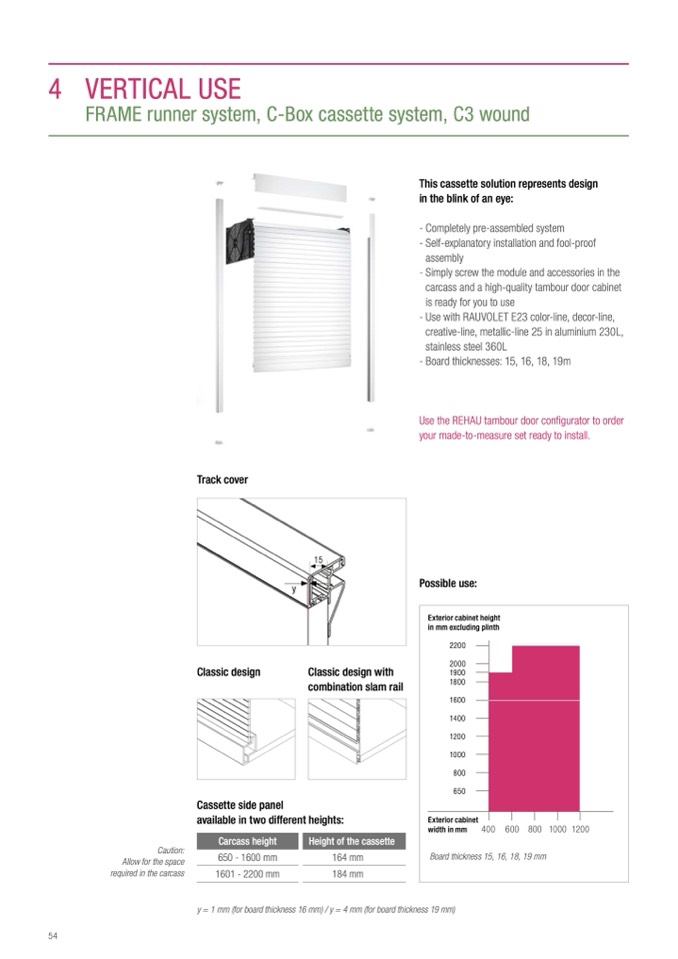

4 VERTICAL USE

FRAME runner system, C-Box cassette system, C3 wound

Track cover

This cassette solution represents design

in the blink of an eye:

- Completely pre-assembled system

- Self-explanatory installation and fool-proof

assembly

- Simply screw the module and accessories in the

carcass and a high-quality tambour door cabinet

is ready for you to use

- Use with RAUVOLET E23 color-line, decor-line,

creative-line, metallic-line 25 in aluminium 230L,

stainless steel 360L

- Board thicknesses: 15, 16, 18, 19m

Use the REHAU tambour door configurator to order

your made-to-measure set ready to install.

Possible use:

15

y

Exterior cabinet height

in mm excluding plinth

2200

2000

1900

1800

1600

1400

1200

1000

800

650

Exterior cabinet

width in mm

400 600

800 1000 1200

Board thickness 15, 16, 18, 19 mm

Caution:

Allow for the space

required in the carcass

Cassette side panel

available in two different heights:

650 - 1600 mm

164 mm

1601 - 2200 mm

184 mm

Classic design

Classic design with

combination slam rail

Carcass height

Height of the cassette

54

y = 1 mm (for board thickness 16 mm) / y = 4 mm (for board thickness 19 mm)
