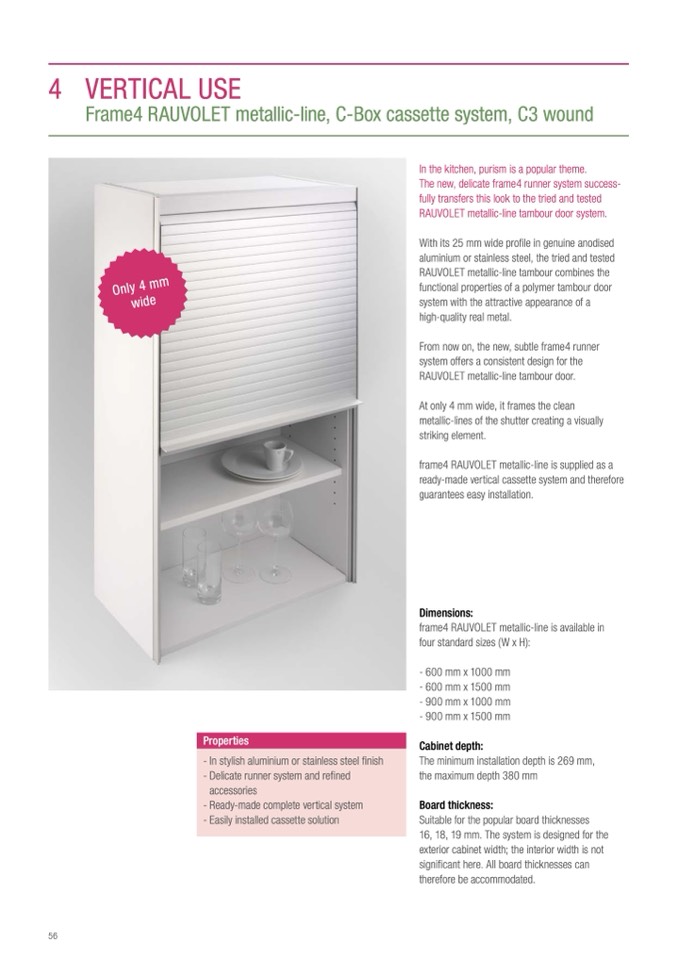

4 VERTICAL USE

Frame4 RAUVOLET metallic-line, C-Box cassette system, C3 wound

In the kitchen, purism is a popular theme.

The new, delicate frame4 runner system success-

fully transfers this look to the tried and tested

RAUVOLET metallic-line tambour door system.

With its 25 mm wide profile in genuine anodised

aluminium or stainless steel, the tried and tested

RAUVOLET metallic-line tambour combines the

functional properties of a polymer tambour door

system with the attractive appearance of a

high-quality real metal.

From now on, the new, subtle frame4 runner

system offers a consistent design for the

RAUVOLET metallic-line tambour door.

At only 4 mm wide, it frames the clean

metallic-lines of the shutter creating a visually

striking element.

frame4 RAUVOLET metallic-line is supplied as a

ready-made vertical cassette system and therefore

guarantees easy installation.

Dimensions:

frame4 RAUVOLET metallic-line is available in

four standard sizes (W x H):

- 600 mm x 1000 mm

- 600 mm x 1500 mm

- 900 mm x 1000 mm

- 900 mm x 1500 mm

Cabinet depth:

The minimum installation depth is 269 mm,

the maximum depth 380 mm

Board thickness:

Suitable for the popular board thicknesses

16, 18, 19 mm. The system is designed for the

exterior cabinet width; the interior width is not

significant here. All board thicknesses can

therefore be accommodated.

Properties

- In stylish aluminium or stainless steel finish

- Delicate runner system and refined

accessories

- Ready-made complete vertical system

- Easily installed cassette solution

56

Only 4 mm

wide
