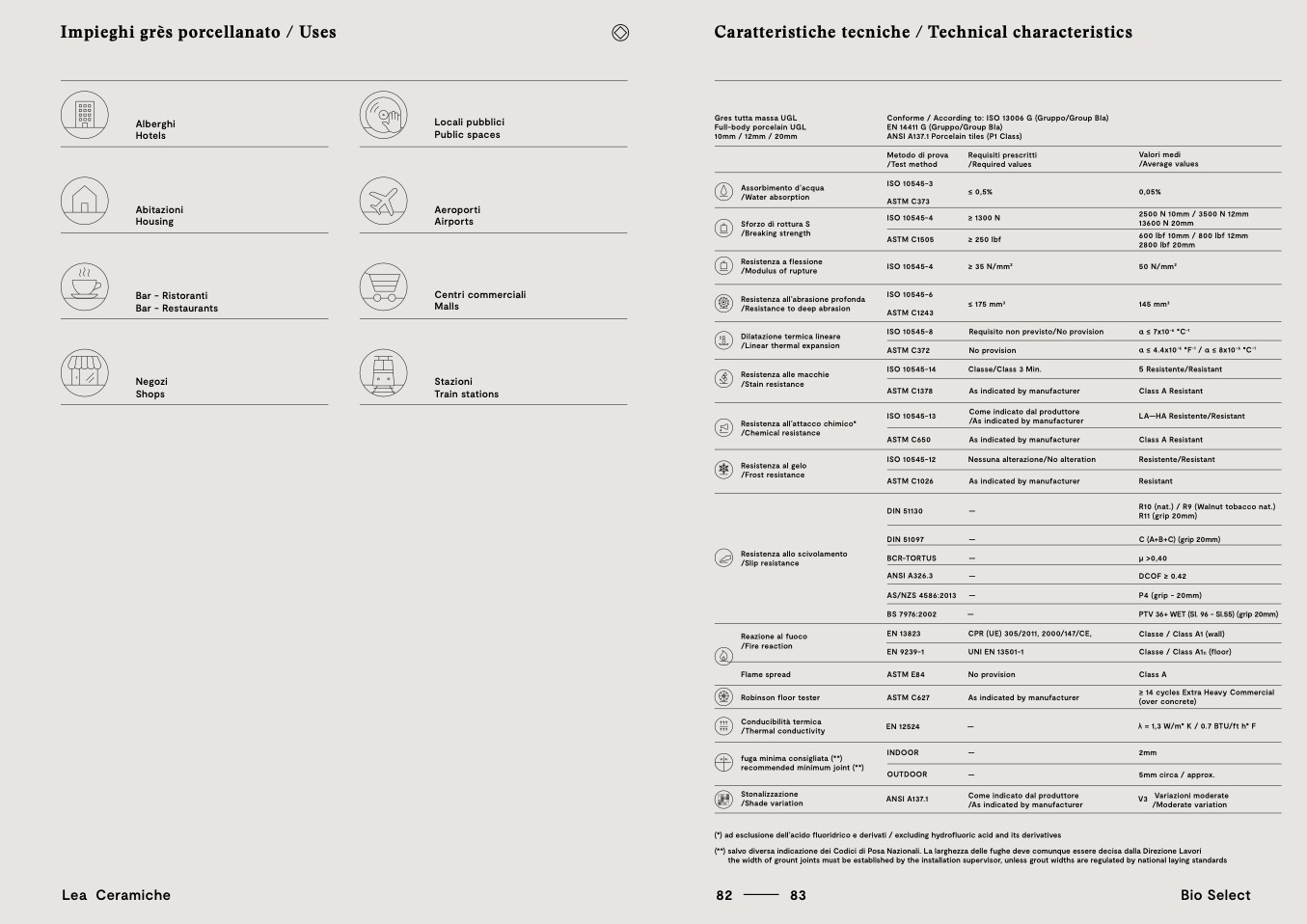

Impieghi grès porcellanato / Uses
Caratteristiche tecniche / Technical characteristics
Alberghi
Hotels
Abitazioni
Housing
Bar - Ristoranti
Bar - Restaurants
Negozi
Shops
Locali pubblici
Public spaces
Aeroporti
Airports
Centri commerciali
Malls
Stazioni
Train stations
Gres tutta massa UGL
Full-body porcelain UGL
10mm / 12mm / 20mm
Assorbimento d’acqua
/Water absorption
Sforzo di rottura S
/Breaking strength
Resistenza a flessione
/Modulus of rupture
Resistenza all’abrasione profonda
/Resistance to deep abrasion
Dilatazione termica lineare
/Linear thermal expansion
Resistenza alle macchie
/Stain resistance
Resistenza all’attacco chimico*
/Chemical resistance
Resistenza al gelo
/Frost resistance
Resistenza allo scivolamento
/Slip resistance
Reazione al fuoco
/Fire reaction
Flame spread
Robinson floor tester
Conducibilità termica
/Thermal conductivity
fuga minima consigliata (**)
recommended minimum joint (**)
Stonalizzazione
/Shade variation
Conforme / According to: ISO 13006 G (Gruppo/Group BIa)
EN 14411 G (Gruppo/Group BIa)
ANSI A137.1 Porcelain tiles (P1 Class)
Metodo di prova
/Test method
ISO 10545-3
ASTM C373
ISO 10545-4
ASTM C1505
ISO 10545-4
ISO 10545-6
ASTM C1243
ISO 10545-8
ASTM C372
ISO 10545-14
ASTM C1378
ISO 10545-13
ASTM C650
ISO 10545-12
ASTM C1026
DIN 51130
DIN 51097
BCR-TORTUS
ANSI A326.3
AS/NZS 4586:2013
BS 7976:2002
EN 13823
EN 9239-1
ASTM E84
ASTM C627
EN 12524
INDOOR
OUTDOOR
ANSI A137.1
Requisiti prescritti
/Required values
≤ 0,5%
≥1300N
≥ 250 lbf
≥ 35 N/mm
2
≤ 175 mm
3
Requisito non previsto/No provision
No provision
Classe/Class 3 Min.
As indicated by manufacturer
Come indicato dal produttore
/As indicated by manufacturer
As indicated by manufacturer
Nessuna alterazione/No alteration
As indicated by manufacturer
—
—
—
—
—
—
CPR (UE) 305/2011, 2000/147/CE,
UNI EN 13501-1
No provision
As indicated by manufacturer
—
—
—
Come indicato dal produttore
/As indicated by manufacturer
Valori medi
/Average values
0,05%
2500 N 10mm / 3500 N 12mm
13600 N 20mm
600 lbf 10mm / 800 lbf 12mm
2800 lbf 20mm
50 N/mm
2
145 mm
3
a ≤ 7x10
-6
°C
-1
a ≤ 4.4x10
-6
°F
-1
/ a ≤ 8x10
-6
°C
-1
5 Resistente/Resistant
Class A Resistant
LA—HA Resistente/Resistant
Class A Resistant
Resistente/Resistant
Resistant
R10 (nat.) / R9 (Walnut tobacco nat.)
R11 (grip 20mm)
C (A+B+C) (grip 20mm)
μ >0,40
DCOF ≥ 0.42
P4 (grip - 20mm)
PTV 36+ WET (Sl. 96 - Sl.55) (grip 20mm)
Classe / Class A1 (wall)
Classe / Class A1
fl
(floor)
Class A
≥ 14 cycles Extra Heavy Commercial
(over concrete)
λ = 1,3 W/m° K / 0.7 BTU/ft h° F
2mm
5mm circa / approx.
V3
Variazioni moderate
/Moderate variation
Lea Ceramiche
82
83
Bio Select
(*) ad esclusione dell’acido fluoridrico e derivati / excluding hydrofluoric acid and its derivatives
(**) salvo diversa indicazione dei Codici di Posa Nazionali. La larghezza delle fughe deve comunque essere decisa dalla Direzione Lavori
the width of grount joints must be established by the installation supervisor, unless grout widths are regulated by national laying standards
