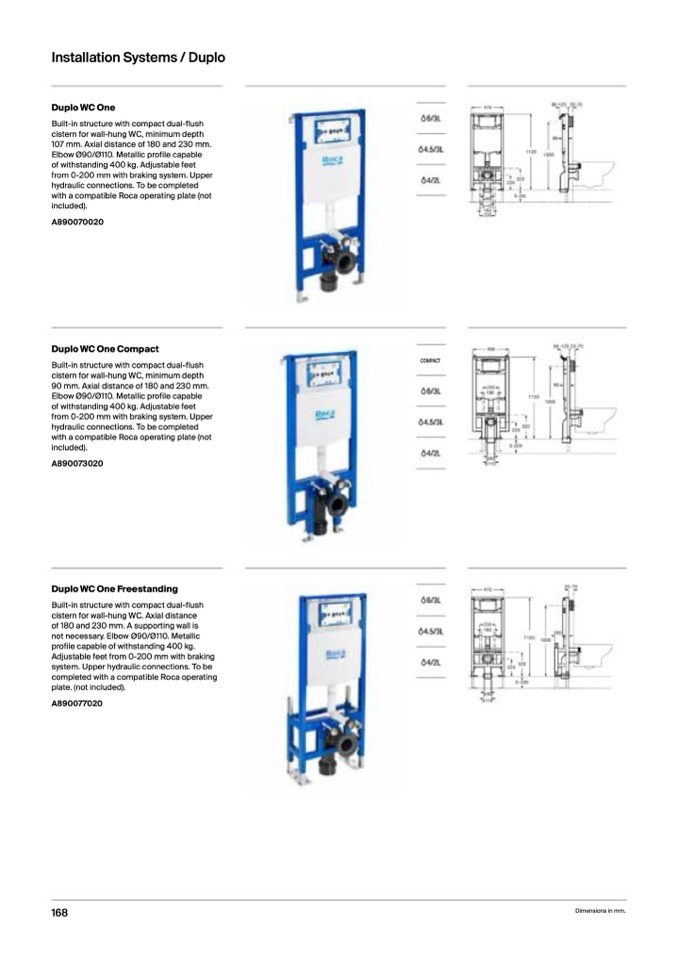

Installation Systems / Duplo

DuploWCOne

Built-in structure with compact dual-flush

cistern for wall-hung WC, minimum depth

107 mm. Axial distance of 180 and 230 mm.

Elbow Ø90/Ø110. Metallic profile capable

of withstanding 400 kg. Adjustable feet

from 0-200 mm with braking system. Upper

hydraulic connections. To be completed

with a compatible Roca operating plate (not

included).

A890070020

Duplo WC One Compact

Built-in structure with compact dual-flush

cistern for wall-hung WC, minimum depth

90 mm. Axial distance of 180 and 230 mm.

Elbow Ø90/Ø110. Metallic profile capable

of withstanding 400 kg. Adjustable feet

from 0-200 mm with braking system. Upper

hydraulic connections. To be completed

with a compatible Roca operating plate (not

included).

A890073020

Duplo WC One Freestanding

Built-in structure with compact dual-flush

cistern for wall-hung WC. Axial distance

of 180 and 230 mm. A supporting wall is

not necessary. Elbow Ø90/Ø110. Metallic

profile capable of withstanding 400 kg.

Adjustable feet from 0-200 mm with braking

system. Upper hydraulic connections. To be

completed with a compatible Roca operating

plate. (not included).

A890077020

COMPACT

168

Dimensions in mm.
