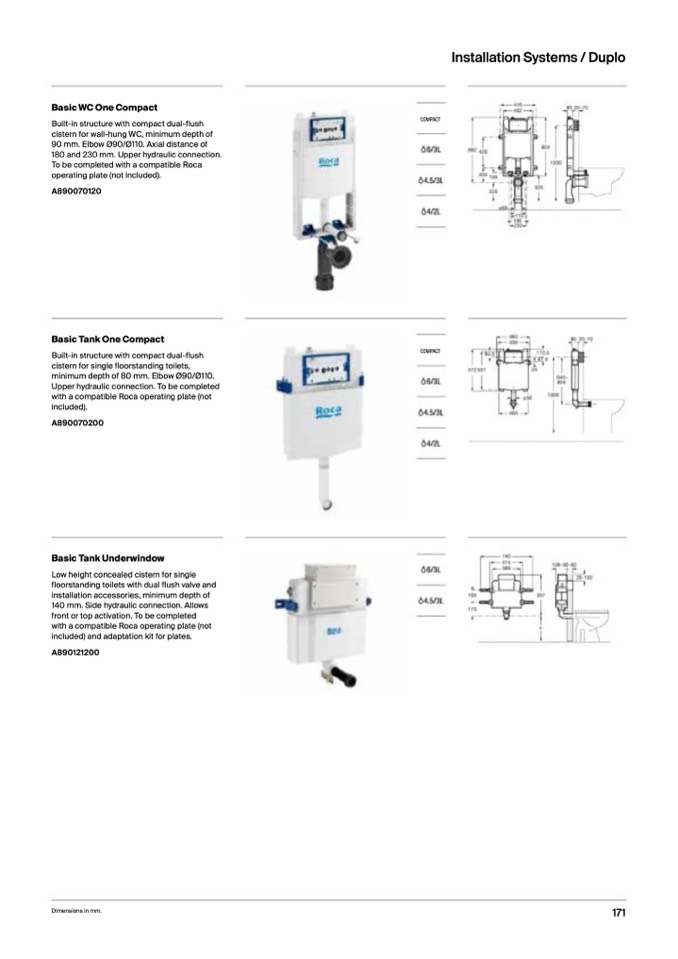

Basic WC One Compact

Built-in structure with compact dual-flush

cistern for wall-hung WC, minimum depth of

90 mm. Elbow Ø90/Ø110. Axial distance of

180 and 230 mm. Upper hydraulic connection.

To be completed with a compatible Roca

operating plate (not included).

A890070120

Basic Tank One Compact

Built-in structure with compact dual-flush

cistern for single floorstanding toilets,

minimum depth of 80 mm. Elbow Ø90/Ø110.

Upper hydraulic connection. To be completed

with a compatible Roca operating plate (not

included).

A890070200

Basic Tank Underwindow

Low height concealed cistern for single

floorstanding toilets with dual flush valve and

installation accessories, minimum depth of

140 mm. Side hydraulic connection. Allows

front or top activation. To be completed

with a compatible Roca operating plate (not

included) and adaptation kit for plates.

A890121200

COMPACT

Dimensions in mm.

171

COMPACT

Installation Systems / Duplo
