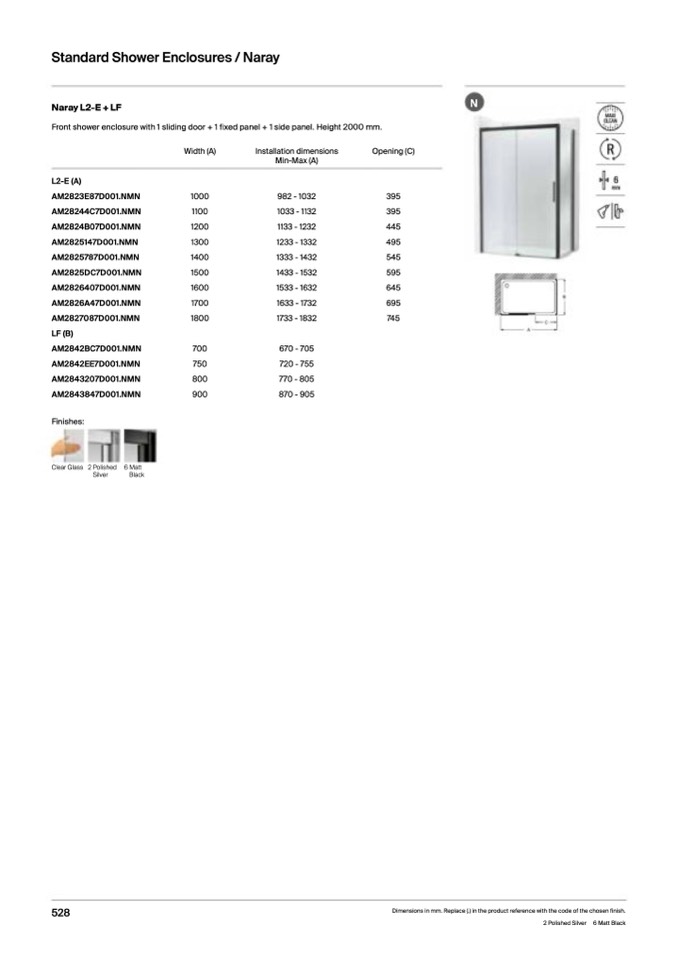

Standard Shower Enclosures / Naray

Naray L2-E + LF

Front shower enclosure with 1 sliding door + 1 fixed panel + 1 side panel. Height 2000 mm.

N

L2-E (A)

AM2823E87D001.NMN

AM28244C7D001.NMN

AM2824B07D001.NMN

AM2825147D001.NMN

AM2825787D001.NMN

AM2825DC7D001.NMN

AM2826407D001.NMN

AM2826A47D001.NMN

AM2827087D001.NMN

LF(B)

AM2842BC7D001.NMN

AM2842EE7D001.NMN

AM2843207D001.NMN

AM2843847D001.NMN

Width (A)

1000

1100

1200

1300

1400

1500

1600

1700

1800

700

750

800

900

Installation dimensions

Min-Max (A)

982-1032

1033 - 1132

1133 - 1232

1233 - 1332

1333 - 1432

1433 - 1532

1533-1632

1633 - 1732

1733 - 1832

670 - 705

720 - 755

770 - 805

870 - 905

Opening (C)

395

395

445

495

545

595

645

695

745

Finishes:

Clear Glass 2 Polished

Silver

6 Matt

Black

528

Dimensions in mm. Replace (.) in the product reference with the code of the chosen finish.

2 Polished Silver 6 Matt Black
