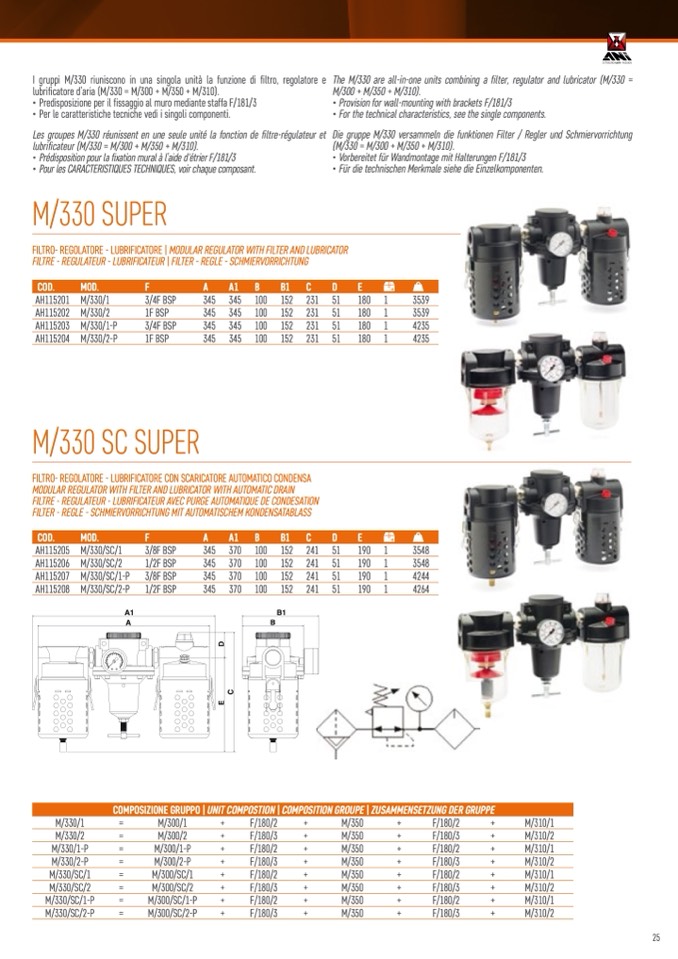

I gruppi M/330 riuniscono in una singola unità la funzione di filtro, regolatore e
lubrificatore d’aria (M/330 = M/300 + M/350 + M/310).
• Predisposizione per il fissaggio al muro mediante staffa F/181/3
• Per le caratteristiche tecniche vedi i singoli componenti.
Les groupes M/330 réunissent en une seule unité la fonction de filtre-régulateur et
lubrificateur (M/330 = M/300 + M/350 + M/310).
• Prédisposition pour la fixation mural à l’aide d'étrier F/181/3
• Pour les CARACTERISTIQUES TECHNIQUES, voir chaque composant.
M/330 SUPER
FILTRO- REGOLATORE - LUBRIFICATORE | MODULAR REGULATOR WITH FILTER AND LUBRICATOR
FILTRE - REGULATEUR - LUBRIFICATEUR | FILTER - REGLE - SCHMIERVORRICHTUNG
COD.
MOD.
AH115201 M/330/1
AH115202 M/330/2
AH115203 M/330/1-P
AH115204 M/330/2-P
F
A
A
1
B
B
1
C
3/4FBSP
345 345 100 152 231
1FBSP
345 345 100 152 231
3/4FBSP
345 345 100 152 231
1FBSP
345 345 100 152 231
D
E
51 180 1
3539
51 180 1
3539
51 180 1
4235
51 180 1
4235
M/330 SC SUPER
FILTRO- REGOLATORE - LUBRIFICATORE CON SCARICATORE AUTOMATICO CONDENSA
MODULAR REGULATOR WITH FILTER AND LUBRICATOR WITH AUTOMATIC DRAIN
FILTRE - REGULATEUR - LUBRIFICATEUR AVEC PURGE AUTOMATIQUE DE CONDESATION
FILTER - REGLE - SCHMIERVORRICHTUNG MIT AUTOMATISCHEM KONDENSATABLASS
COD.
MOD.
AH115205 M/330/SC/1
AH115206 M/330/SC/2
AH115207 M/330/SC/1-P
AH115208 M/330/SC/2-P
F
3/8FBSP
1/2FBSP
3/8FBSP
1/2FBSP
A
A
1
B
B
1
C
345 370 100 152 241
345 370 100 152 241
345 370 100 152 241
345 370 100 152 241
D
E
51 190 1
3548
51 190 1
3548
51 190 1
4244
51 190 1
4264
M/330/1
M/330/2
M/330/1-P
M/330/2-P
M/330/SC/1
M/330/SC/2
M/330/SC/1-P
M/330/SC/2-P
COMPOSIZIONE GRUPPO | UNIT COMPOSTION | COMPOSITION GROUPE | ZUSAMMENSETZUNG DER GRUPPE
A1
A
B
B1
=
M/300/1
+
=
M/300/2
+
=
M/300/1-P
+
=
M/300/2-P
+
=
M/300/SC/1
+
=
M/300/SC/2
+
=
M/300/SC/1-P
+
=
M/300/SC/2-P
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
M/350
+
M/350
+
M/350
+
M/350
+
M/350
+
M/350
+
M/350
+
M/350
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
F/180/2
+
F/180/3
+
M/310/1
M/310/2
M/310/1
M/310/2
M/310/1
M/310/2
M/310/1
M/310/2
The M/330 are all-in-one units combining a filter, regulator and lubricator (M/330 =
M/300 + M/350 + M/310).
• Provision for wall-mounting with brackets F/181/3
• For the technical characteristics, see the single components.
Die gruppe M/330 versammeln die funktionen Filter / Regler und Schmiervorrichtung
(M/330 = M/300 + M/350 + M/310).
• Vorbereitet für Wandmontage mit Halterungen F/181/3
• Für die technischen Merkmale siehe die Einzelkomponenten.
E
D
C
25
