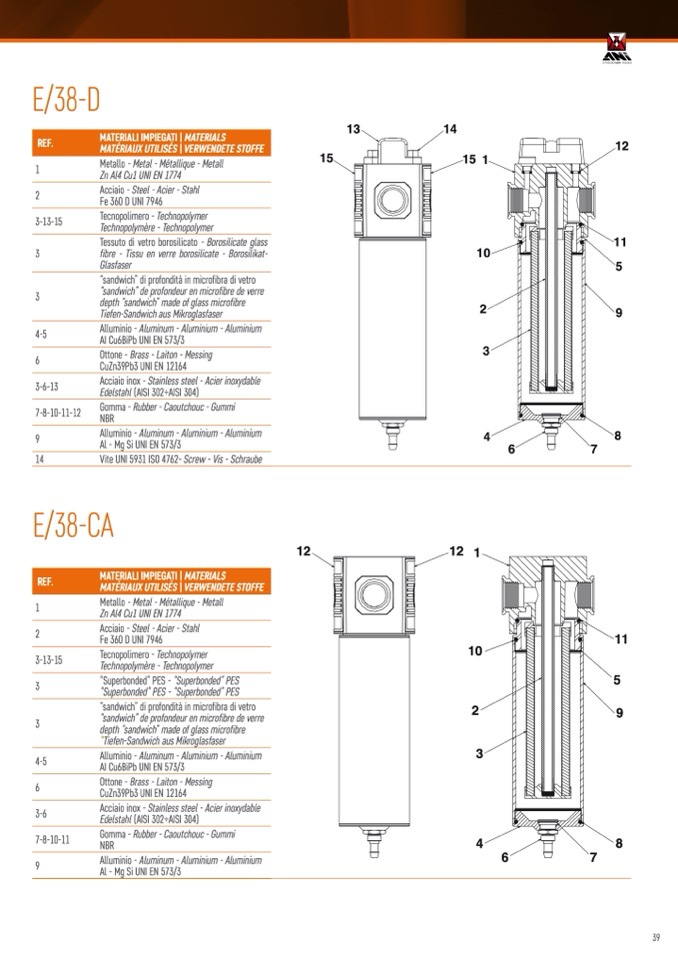

E/38-D

REF.

1

2

3-13-15

MATERIALI IMPIEGATI | MATERIALS

MATÉRIAUX UTILISÉS | VERWENDETE STOFFE

Metallo - Metal - Métallique - Metall

Zn Al4 Cu1 UNI EN 1774

Acciaio - Steel - Acier - Stahl

Fe 360 D UNI 7946

Tecnopolimero - Technopolymer

Technopolymère - Technopolymer

13

14

Tessuto di vetro borosilicato - Borosilicate glass

3

fibre - Tissu en verre borosilicate - Borosilikat-

3

4-5

6

3-6-13

7-8-10-11-12

Glasfaser

“sandwich” di profondità in microfibra di vetro

“sandwich” de profondeur en microfibre de verre

depth “sandwich” made of glass microfibre

Tiefen-Sandwich aus Mikroglasfaser

Alluminio - Aluminum - Aluminium - Aluminium

AI Cu6BiPb UNI EN 573/3

Ottone - Brass - Laiton - Messing

CuZn39Pb3 UNI EN 12164

Acciaio inox - Stainless steel - Acier inoxydable

Edelstahl (AISI 302÷AISI 304)

Gomma - Rubber - Caoutchouc - Gummi

NBR

9

Alluminio - Aluminum - Aluminium - Aluminium

Al - Mg Si UNI EN 573/3

14

Vite UNI 5931 ISO 4762- Screw - Vis - Schraube

E/38-CA

4

6

7

8

REF.

1

2

3-13-15

3

3

4-5

6

3-6

7-8-10-11

9

MATERIALI IMPIEGATI | MATERIALS

MATÉRIAUX UTILISÉS | VERWENDETE STOFFE

Metallo - Metal - Métallique - Metall

Zn Al4 Cu1 UNI EN 1774

Acciaio - Steel - Acier - Stahl

Fe 360 D UNI 7946

Tecnopolimero - Technopolymer

Technopolymère - Technopolymer

“Superbonded” PES - “Superbonded” PES

“Superbonded” PES - “Superbonded” PES

“sandwich” di profondità in microfibra di vetro

“sandwich” de profondeur en microfibre de verre

depth “sandwich” made of glass microfibre

“Tiefen-Sandwich aus Mikroglasfaser

Alluminio - Aluminum - Aluminium - Aluminium

AI Cu6BiPb UNI EN 573/3

Ottone - Brass - Laiton - Messing

CuZn39Pb3 UNI EN 12164

Acciaio inox - Stainless steel - Acier inoxydable

Edelstahl (AISI 302÷AISI 304)

Gomma - Rubber - Caoutchouc - Gummi

NBR

Alluminio - Aluminum - Aluminium - Aluminium

Al - Mg Si UNI EN 573/3

10

11

5

12

12 1

15

15 1

10

2

3

12

11

5

9

2

3

9

4

6

7

8
