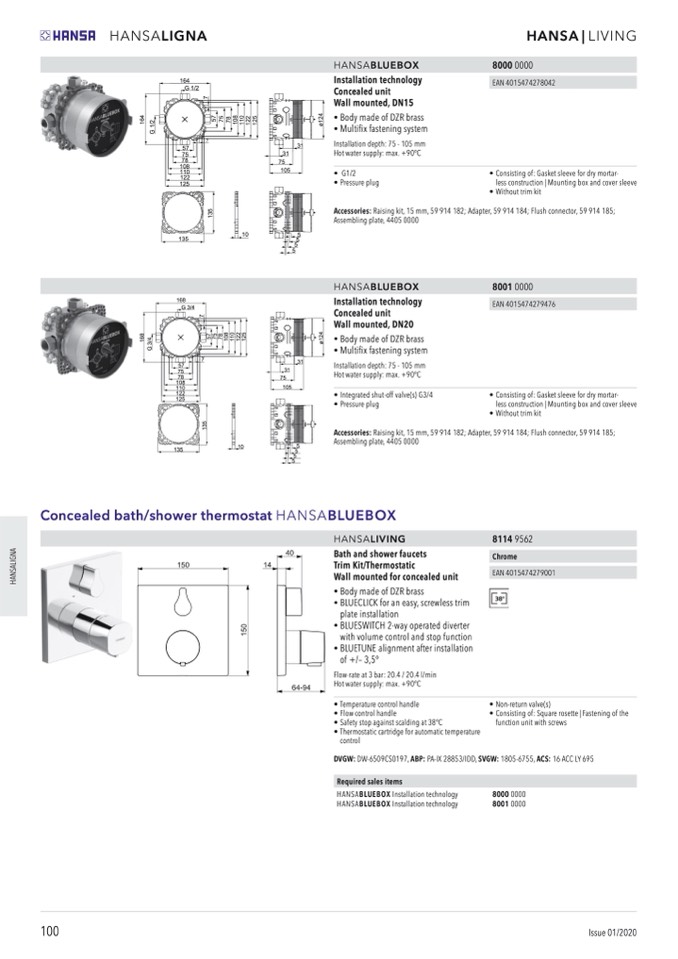

Concealed bath/shower thermostat HANSABLUEBOX
HANSALIVING
Bath and shower faucets
Trim Kit/Thermostatic
Wall mounted for concealed unit
• Body made of DZR brass
• BLUECLICK for an easy, screwless trim
plate installation
• BLUESWITCH 2-way operated diverter
with volume control and stop function
• BLUETUNE alignment after installation
of +/– 3,5o
Flow-rate at 3 bar: 20.4 / 20.4 l/min
Hot water supply: max. +90°C
• Temperature control handle
• Flow control handle
• Safety stop against scalding at 38°C
• Thermostatic cartridge for automatic temperature
81149562
Chrome
EAN 4015474279001
€ 537,00
100
Issue 01/2020
75
105
HANSABLUEBOX
Installation technology
Concealed unit
Wall mounted, DN15
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• G1/2
• Pressure plug
80000000
EAN 4015474278042
€ 76,10
Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;
Assembling plate, 4405 0000
HANSABLUEBOX
Installation technology
Concealed unit
Wall mounted, DN20
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• Integrated shut-off valve(s) G3/4
• Pressure plug
80010000
EAN 4015474279476
€ 110,00
